ADC12C170

ADC12C170

正在供货

12 位、170MSPS、1.1GHz 输入带宽模数转换器 (ADC)

产品详情
  • 说明
  • 特性
  • 参数
  • 封装 | 引脚 | 尺寸

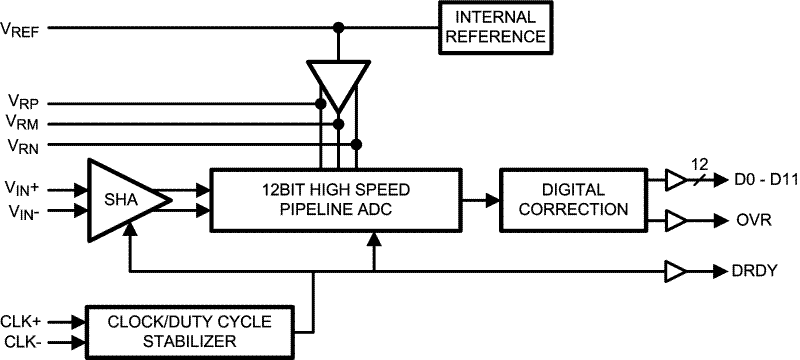

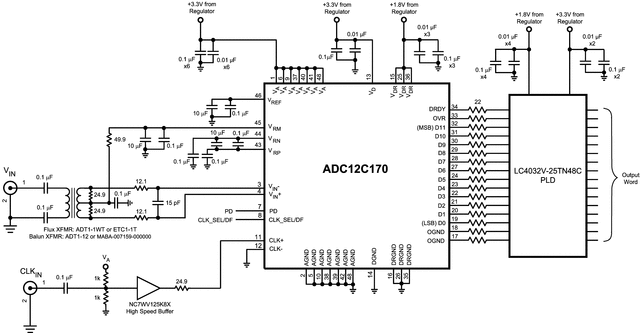

The ADC12C170 is a high-performance CMOS analog-to-digital converter capable of converting analog input signals into 12-Bit digital words at rates up to 170 Mega Samples Per Second (MSPS). This converter uses a differential, pipelined architecture with digital error correction and an on-chip sample-and-hold circuit to minimize power consumption and the external component count, while providing excellent dynamic performance. A unique sample-and-hold stage yields a full-power bandwidth of 1.1 GHz. The ADC12C170 operates from dual +3.3V and +1.8V power supplies and consumes 715 mW of power at 170 MSPS.

The separate +1.8V supply for the digital output interface allows lower power operation with reduced noise. A power-down feature reduces the power consumption to 5 mW while still allowing fast wake-up time to full operation. In addition there is a sleep feature which consumes 50 mW of power and has a faster wake-up time.

The differential inputs provide a full scale differential input swing equal to 2 times the reference voltage. A stable 1.0V internal voltage reference is provided, or the ADC12C170 can be operated with an external reference.

Clock mode (differential versus single-ended) and output data format (offset binary versus 2's complement) are pin-selectable. A duty cycle stabilizer maintains performance over a wide range of input clock duty cycles.

The ADC12C170 is pin compatible with the ADC14155, ADC11C125 and ADC11C170.

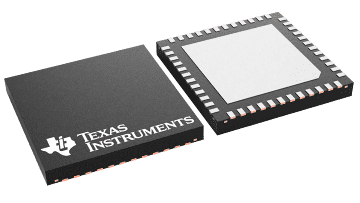

It is available in a 48-lead WQFN package and operates over the industrial temperature range of −40°C to +85°C.

  • 1.1 GHz Full Power Bandwidth
  • Internal Sample-and-Hold Circuit
  • Low Power Consumption
  • Internal Precision 1.0V Reference
  • Single-Ended or Differential Clock Modes
  • Clock Duty Cycle Stabilizer
  • Dual +3.3V and +1.8V Supply Operation
  • Power-Down and Sleep Modes
  • Offset Binary or 2's Complement Output Data Format
  • Pin-Compatible: ADC14155, ADC11C125, ADC11C170
  • 48-Pin WQFN Package, (7x7x0.8mm, 0.5mm Pin-Pitch)

Key Specifications

  • Resolution 12 Bits
  • Conversion Rate 170 MSPS

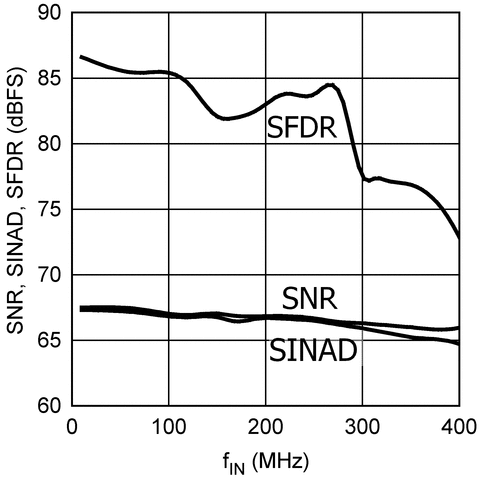

  • SNR (fIN = 70 MHz) 67.2 dBFS (typ)
  • SFDR (fIN = 70 MHz) 85.4 dBFS (typ)
  • ENOB (fIN = 70 MHz) 10.8 bits (typ)
  • Full Power Bandwidth 1.1 GHz (typ)
  • Power Consumption 715 mW (typ)

All trademarks are the property of their respective owners.

Sample rate (max) (Msps)170
Resolution (Bits)12
Number of input channels1
Interface typeParallel CMOS
Analog input BW (MHz)1100
FeaturesLow Power
RatingCatalog
Peak-to-peak input voltage range (V)2
Power consumption (typ) (mW)715
ArchitecturePipeline
SNR (dB)67.5
ENOB (bit)10.9
SFDR (dB)85.4
Operating temperature range (°C)-40 to 85
Input bufferNo
WQFN (RHS)4849 mm² 7 x 7
