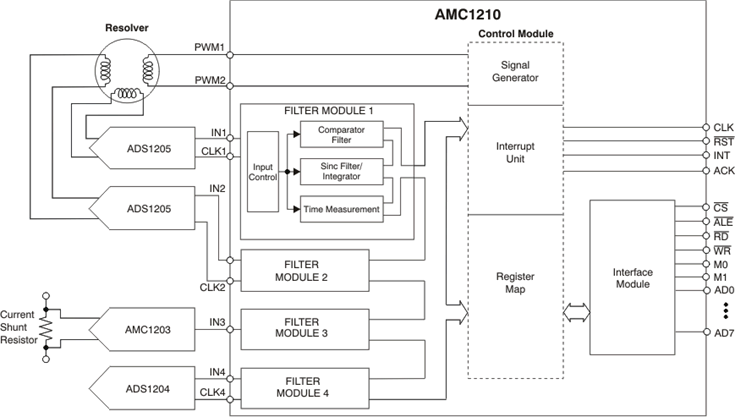

The AMC1210 is a four-channel digital filter designed specifically for current measurement and resolver position decoding in motor control applications. Each input can receive an independent delta-sigma (
) modulator bit stream. The bit streams are processed by four individually-programmable digital decimation filters. The AMC1210 also offers a flexible interface and a comprehensive interrupt unit, allowing customized digital functionality and immediate digital threshold comparisons for over-current monitoring.
All trademarks are the property of their respective owners.
| Interface type | Parallel, Serial SPI |
| Sample rate (max) (Msps) | 0.04 |
| Rating | Catalog |
| Number of input channels | 4 |
| Architecture | Special |
| Operating temperature range (°C) | -40 to 125 |
| Power consumption (typ) (mW) | 24.5 |

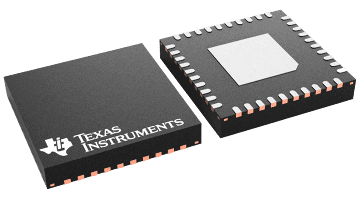

| VQFN (RHA) | 40 | 36 mm² 6 x 6 |
