The DAC8812 is a dual, 16-bit, current-output digital-to-analog converter (DAC) designed to operate from a single 2.7-V to 5.5-V supply.
The applied external reference input voltage VREF determines the full-scale output current. An internal feedback resistor (RFB) provides temperature tracking for the full-scale output when combined with an external I-to-V precision amplifier.

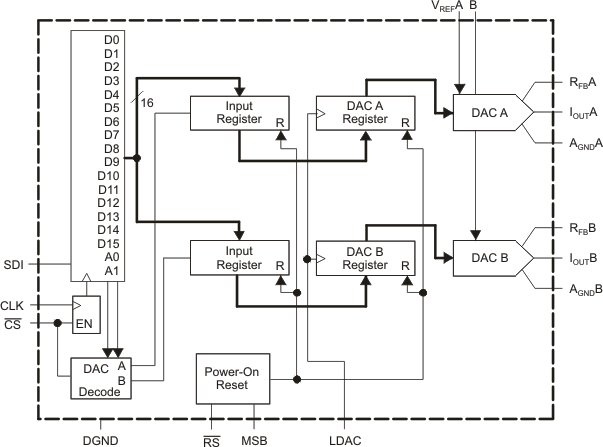

A double-buffered, serial data interface offers high-speed, 3-wire, SPI and microcontroller compatible inputs using serial data in (SDI), clock (CLK), and a chip-select (CS). A common level-sensitive load DAC strobe (LDAC) input allows simultaneous update of all DAC outputs from previously loaded input registers. Additionally, an internal power-on reset forces the output voltage to zero at system turnon. An MSB pin allows system reset assertion (RS) to force all registers to zero code when MSB = 0, or to midscale code when MSB = 1.
For all available packages, see the orderable addendum at the end of the data sheet.
All trademarks are the property of their respective owners. All trademarks are the property of their respective owners.
| Resolution (Bits) | 16 |
| Number of DAC channels | 2 |
| Interface type | SPI |
| Output type | Unbuffered Current |
| Settling time (µs) | 0.5 |
| Features | Reset to Mid-Scale |
| Reference type | Ext |
| Architecture | Multiplying DAC |
| Rating | Catalog |
| Output range (max) (mA/V) | 2 |
| Output range (min) (mA/V) | 0 |
| Sample/update rate (Msps) | 2 |
| Power consumption (typ) (mW) | 0.025 |
| Operating temperature range (°C) | -40 to 85 |
| TSSOP (PW) | 16 | 32 mm² 5 x 6.4 |
