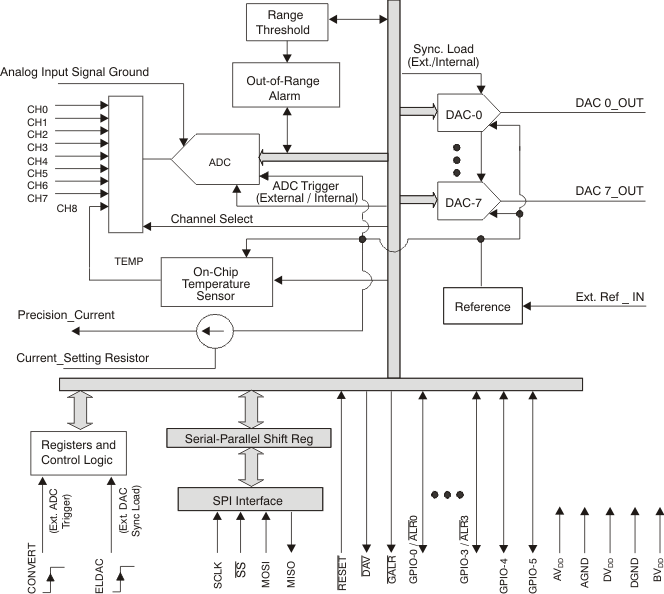

The AMC7823 is a complete analog monitoring and control circuit that includes an 8-channel, 12-bit analog-to-digital converter (ADC), eight 12-bit digital- to-analog converters (DACs), four analog input out-of-range alarms, and six GPIOs to monitor analog signals and control external devices. Also, the AMC7823 has an internal sensor to monitor chip temperature, and a precision current source to drive remote thermistors, or RTDs, to monitor remote temperatures.
| Number of ADC channels | 8 |
| ADC resolution (Bps) | 12 |
| Number of DAC channels | 8 |
| DAC resolution (Bps) | 12 |
| Temperature sensing | Local, Remote |
| Number of GPIOs | 6 |
| Interface type | SPI |
| Features | GPIO, Temp Sensor |
| Operating temperature range (°C) | -40 to 85 |
| Rating | Catalog |
| ADC sampling rate (ksps) | 200 |
| ADC analog input range (min) (V) | 0 |
| ADC analog input range (max) (V) | 5 |
| DAC settling time (µs) | 2 |
| DAC output full-scale (min) (V) | 0 |
| DAC output full-scale (max) (V) | 5 |

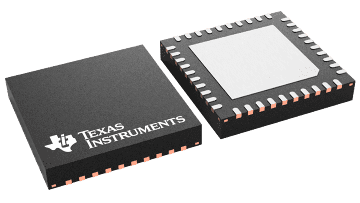

| WQFN (RTA) | 40 | 36 mm² 6 x 6 |
