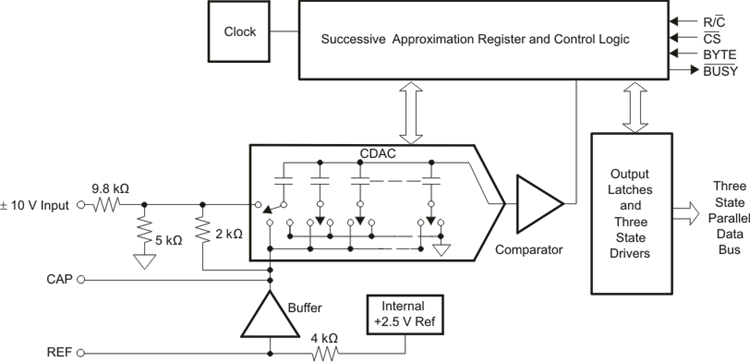

The ADS8505 is a complete 16-bit sampling A/D converter using state-of-the-art CMOS structures. It contains a complete 16-bit, capacitor-based, SAR A/D with S/H, reference, clock, interface for microprocessor use, and 3-state output drivers.
The ADS8505 is specified at a 250-kHz sampling rate over the full temperature range. Precision resistors provide an industry standard ±10-V input range, while the innovative design allows operation from a single +5-V supply, with power dissipation under 100 mW.
The ADS8505 is available in 28-pin SOIC and 28-pin SSOP packages, both fully specified for operation over the industrial -40°C to 85°C temperature range.
| Resolution (Bits) | 16 |
| Sample rate (max) (ksps) | 250 |
| Number of input channels | 1 |
| Interface type | Byte-Wide, Parallel |
| Architecture | SAR |
| Input type | Single-ended |
| Rating | Catalog |
| Reference mode | External, Internal |
| Input voltage range (max) (V) | 10 |
| Input voltage range (min) (V) | -10 |
| Features | Oscillator |
| Operating temperature range (°C) | -40 to 85 |
| Power consumption (typ) (mW) | 155 |
| Analog supply (min) (V) | 4.75 |
| Analog supply voltage (max) (V) | 5.25 |
| SNR (dB) | 88 |
| Digital supply (min) (V) | 4.75 |
| Digital supply (max) (V) | 5.25 |
| SOIC (DW) | 28 | 184.37 mm² 17.9 x 10.3 |
| SSOP (DB) | 28 | 79.56 mm² 10.2 x 7.8 |
