The ADS5500-EP is a high-performance, 14-bit, 125 MSPS analog-to-digital converter (ADC). To provide a complete converter solution, it includes a high-bandwidth linear sample-and-hold stage (S&H) and internal reference. Designed for applications demanding the highest speed and highest dynamic performance in a small space, the ADS5500-EP has excellent power consumption of 780 mW at 3.3-V single-supply voltage. This allows an even higher system integration density. The provided internal reference simplifies system design requirements. A parallel CMOS-compatible output ensures seamless interfacing with common logic.

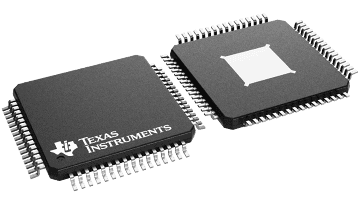

The ADS5500-EP is available in a 64-pin TQFP PowerPAD package and is specified over the full temperature range of –55°C to +125°C.
(1)Custom temperature ranges available.
| Sample rate (max) (Msps) | 125 |
| Resolution (Bits) | 14 |
| Number of input channels | 1 |
| Interface type | Parallel CMOS |
| Analog input BW (MHz) | 750 |
| Features | High Performance |
| Rating | HiRel Enhanced Product |
| Peak-to-peak input voltage range (V) | 2.3 |
| Power consumption (typ) (mW) | 780 |
| Architecture | Pipeline |
| SNR (dB) | 71.5 |
| ENOB (bit) | 11.3 |
| SFDR (dB) | 84 |
| Operating temperature range (°C) | -55 to 125 |
| Input buffer | No |
| HTQFP (PAP) | 64 | 144 mm² 12 x 12 |
