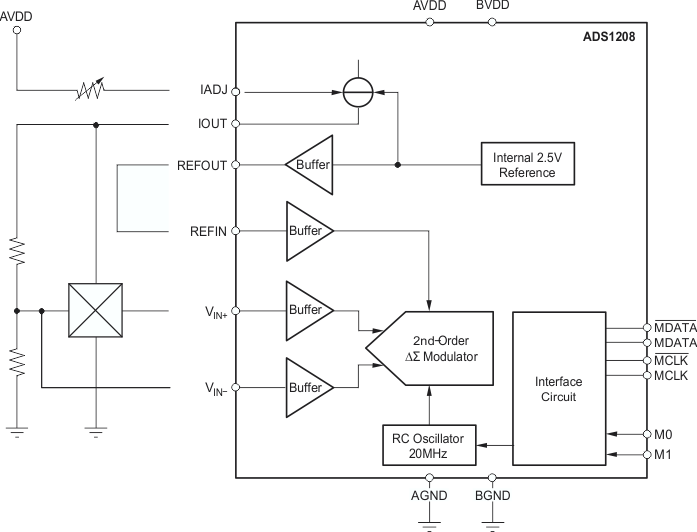

The ADS1208 is a 2nd-order  modulator operating at a 10MHz clock rate. The specified input range is ±100mV, optimized for current measurement with a Hall sensor, especially in motor control applications. The ADS1208 contains a programmable current source for sensor biasing and has integrated input buffers for fast settling of the sample capacitors; it also requires only a minimum of external components. The differential analog input offers low noise and excellent common-mode rejection.</p></p>
</div>
</div>
<div class=)
| Resolution (Bits) | 16 |
| Number of input channels | 1 |
| Interface type | Serial |
| Architecture | Delta-Sigma Modulator |
| Input type | Differential |
| Rating | Catalog |
| Reference mode | External, Internal |
| Input voltage range (max) (V) | 5 |
| Input voltage range (min) (V) | 0 |
| Features | Excitation Current Sources (iDACs), Oscillator |
| Operating temperature range (°C) | -40 to 85 |
| Power consumption (typ) (mW) | 64 |
| Analog supply (min) (V) | 4.5 |
| Analog supply voltage (max) (V) | 5.5 |
| SNR (dB) | 82 |
| Digital supply (min) (V) | 2.7 |
| Digital supply (max) (V) | 5.5 |
| TSSOP (PW) | 16 | 32 mm² 5 x 6.4 |
