The ADS5553 is a high-performance, dual channel, 14 bit, 65 MSPS analog-to-digital converter (ADC). To provide a complete solution, each channel includes a high-bandwidth linear sample-and-hold stage (S& H) and an internal reference. Designed for applications demanding high dynamic performance in a small space, the ADS5553 has excellent power consumption of 0.9 W at 3.3 V single-supply voltage. This allows an even higher system integration density. The provided internal reference simplifies system design requirements, yet an external reference can be used optionally to suit the accuracy and low drift requirements of the application. The outputs are parallel CMOS compatible.

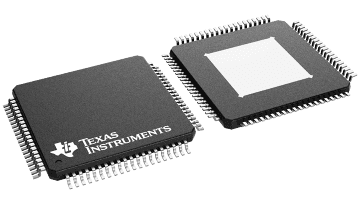

The ADS5553 is available in a 80 lead TQFP PowerPAD package and is specified over the full temperature range of -40°C to 85°C.
PowerPAD and CommsADC are trademarks of Texas Instruments.
| Sample rate (max) (Msps) | 65 |
| Resolution (Bits) | 14 |
| Number of input channels | 2 |
| Interface type | Parallel CMOS |
| Analog input BW (MHz) | 750 |
| Features | High Performance |
| Rating | Catalog |
| Peak-to-peak input voltage range (V) | 2.3 |
| Power consumption (typ) (mW) | 725 |
| Architecture | Pipeline |
| SNR (dB) | 74.4 |
| ENOB (bit) | 11.9 |
| SFDR (dB) | 85 |
| Operating temperature range (°C) | -40 to 85 |
| Input buffer | No |
| HTQFP (PFP) | 80 | 196 mm² 14 x 14 |
