DAC8811

正在供货

建立时间为 0.5us 的 16 位单通道串行输入乘法 DAC

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

The DAC8811 multiplying digital-to-analog converter (DAC) is designed to operate from a single 2.7-V to 5.5-V supply.

The applied external reference input voltage V_REF determines the full-scale output current. An internal feedback resistor (R_FB) provides temperature tracking for the full-scale output when combined with an external I-to-V precision amplifier.

A serial data interface offers high-speed, three-wire microcontroller-compatible inputs using data-in (SDI), clock (CLK), and chip-select (CS).

On power-up, the DAC register is filled with zeroes, and the DAC output is at zero scale.

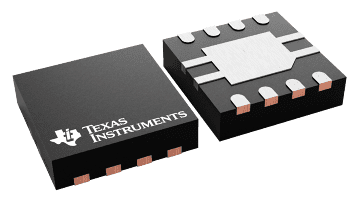

The DAC8811 is packaged in space-saving 8-lead VSON and VSSOP packages.

For all available packages, see the orderable addendum at the end of the datasheet.

±0.5 LSB DNL
16-Bit Monotonic
±1 LSB INL
Low Noise: 12 nV/√Hz
Low Power: I_DD = 2 µA
2.7-V to 5.5-V Analog Power Supply
2-mA Full-Scale Current ±20%,
with V_REF = 10 V
50-MHz Serial Interface
0.5-μs Settling Time
4-Quadrant Multiplying Reference
Reference Bandwidth: 10 MHz
±10-V Reference Input
Reference Dynamics: –105 THD
Tiny 8-Lead 3 × 3 mm VSON and 3 × 5 mm VSSOP Packages
Industry-Standard Pin Configuration

All trademarks are the property of their respective owners.

Resolution (Bits)	16
Number of DAC channels	1
Interface type	SPI
Output type	Unbuffered Current
Settling time (µs)	0.5
Features	Small Size
Reference type	Ext
Architecture	Multiplying DAC
Rating	Catalog
Output range (max) (mA/V)	2
Output range (min) (mA/V)	0
Sample/update rate (Msps)	2
Power consumption (typ) (mW)	0.025
Operating temperature range (°C)	-40 to 105

VSON (DRB)	8	9 mm² 3 x 3
VSSOP (DGK)	8	14.7 mm² 3 x 4.9
