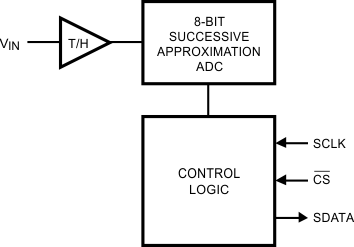

The ADC081S101 is a low-power, single channel CMOS 8-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC081S101 is fully specified over a sample rate range of 500 ksps to 1 Msps. The converter is based upon a successive-approximation register architecture with an internal track-and-hold circuit.
The output serial data is straight binary, and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE, and many common DSP serial interfaces.
The ADC081S101 operates with a single supply that can range from +2.7V to +5.25V. Normal power consumption using a +3V or +5V supply is 2.0 mW and 10.0 mW, respectively. The power-down feature reduces the power consumption to just 2.5 µW using a +5V supply.
The ADC081S101 is packaged in an 6-lead WSON and SOT-23 packages. Operation over the industrial temperature range of −40°C to +85°C is ensured.
| Resolution (Bits) | 8 |
| Sample rate (max) (ksps) | 1000 |
| Number of input channels | 1 |
| Interface type | Microwire (Serial I/O), SPI |
| Architecture | SAR |
| Input type | Single-ended |
| Rating | Catalog |
| Reference mode | Supply |
| Input voltage range (max) (V) | 5.25 |
| Input voltage range (min) (V) | 0 |
| Features | Small Size |
| Operating temperature range (°C) | -40 to 85 |
| Power consumption (typ) (mW) | 3 |
| Analog supply (min) (V) | 2.7 |
| Analog supply voltage (max) (V) | 5.25 |
| SNR (dB) | 49.7 |
| Digital supply (min) (V) | 2.7 |
| Digital supply (max) (V) | 5.25 |
| SOT-23 (DBV) | 6 | 8.12 mm² 2.9 x 2.8 |
| WSON (NGF) | 6 | 5.5 mm² 2.5 x 2.2 |
