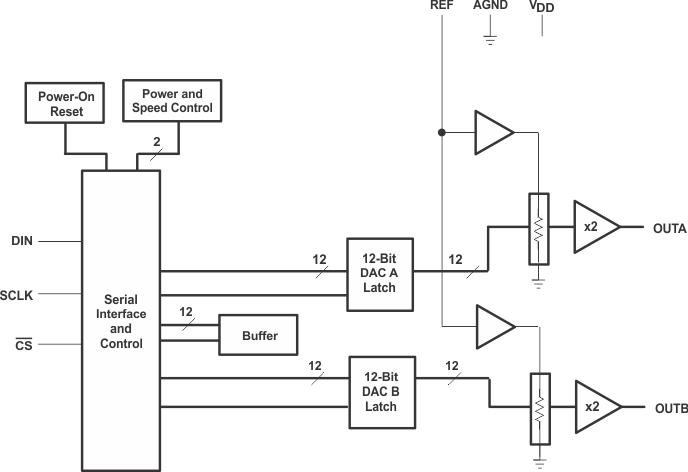

The TLV5618A is a dual 12-bit voltage output DAC with a flexible 3-wire serial interface. The serial interface is compatible with TMS320, SPI™, QSPI™, and Microwire™ serial ports. It is programmed with a 16-bit serial string containing 4 control and 12 data bits.
The resistor string output voltage is buffered by an x2 gain rail-to-rail output buffer. The buffer features a Class-AB output stage to improve stability and reduce settling time. The programmable settling time of the DAC allows the designer to optimize speed versus power dissipation.
Implemented with a CMOS process, the device is designed for single supply operation from 2.7 V to 5.5 V. It is available in an 8-pin SOIC package.
The TLV5618AM is characterized for operation from –55°C to 125°C.
Component qualification in accordance with JEDEC and industry standards to ensure reliable operation over an extended temperature range. This includes, but is not limited to, Highly Accelerated Stress Test (HAST) or biased 85/85, temperature cycle, autoclave or unbiased HAST, electromigration, bond intermetallic life, and mold compound life. Such qualification testing should not be viewed as justifying use of this component beyond specified performance and environmental limits.
SPI and QSPI are trademarks of Motorola, Inc.
Microwire is a trademark of National Semiconductor Corporation.
| Resolution (Bits) | 12 |
| Number of DAC channels | 2 |
| Interface type | SPI |
| Output type | Buffered Voltage |
| Settling time (µs) | 3 |
| Reference type | Ext |
| Architecture | String |
| Rating | HiRel Enhanced Product |
| Output range (max) (mA/V) | 5.1 |
| Output range (min) (mA/V) | 0 |
| Sample/update rate (Msps) | 0.093 |
| Power consumption (typ) (mW) | 1.8 |
| Operating temperature range (°C) | -55 to 125 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
