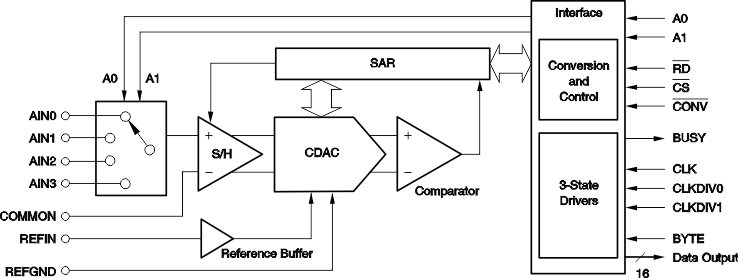

The ADS8342 is a 4-channel, 16-bit analog-to-digital converter (ADC). It contains a 16-bit succesive approximation register (SAR), a capacitor-based ADC with an inherent sample-and-hold circuit, an interface for microprocessor use, and parallel 3-state output drivers. The ADS8342 is specified at a 250kHz sampling rate while dissipating only 200mW of power using a ±5V power supply.
The ADS8342 is available in a TQFP-48 package and is ensured over the –40°C to +85°C temperature range.
| Resolution (Bits) | 16 |
| Sample rate (max) (ksps) | 250 |
| Number of input channels | 4 |
| Interface type | Byte-Wide, Parallel |
| Architecture | SAR |
| Input type | Pseudo-Differential, Single-ended |
| Multichannel configuration | Multiplexed |
| Rating | Catalog |
| Reference mode | External |
| Input voltage range (max) (V) | 2.5 |
| Input voltage range (min) (V) | -2.5 |
| Operating temperature range (°C) | -40 to 85 |
| Power consumption (typ) (mW) | 208 |
| Analog supply (min) (V) | -5.25 |
| Analog supply voltage (max) (V) | 5.25 |
| SNR (dB) | 86 |
| Digital supply (min) (V) | 2.7 |
| Digital supply (max) (V) | 5.5 |

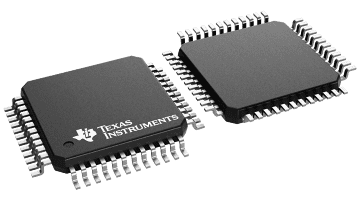

| TQFP (PFB) | 48 | 81 mm² 9 x 9 |
