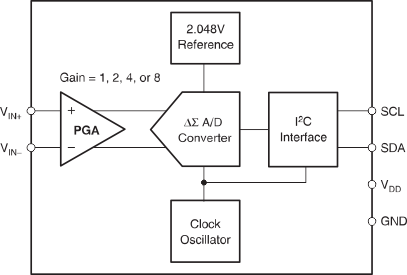

The ADS1110 is a precision, continuously self-calibrating Analog-to-Digital (A/D) converter with differential inputs and up to 16 bits of resolution in a small SOT23-6 package. The onboard 2.048V reference provides an input range of ±2.048V differentially. The ADS1110 uses an I2C-compatible serial interface and operates from a single power supply ranging from 2.7V to 5.5V.
The ADS1110 can perform conversions at rates of 15, 30, 60, or 240 samples per second. The onboard programmable gain amplifier (PGA), which offers gains of up to 8, allows smaller signals to be measured with high resolution. In single-conversion mode, the ADS1110 automatically powers down after a conversion, greatly reducing current consumption during idle periods.
The ADS1110 is designed for applications requiring high-resolution measurement, where space and power consumption are major considerations. Typical applications include portable instrumentation, industrial process control, and smart transmitters.
All trademarks are the property of their respective owners.
| Resolution (Bits) | 16 |
| Sample rate (max) (ksps) | 0.128 |
| Number of input channels | 1 |
| Interface type | I2C |
| Architecture | Delta-Sigma |
| Input type | Differential, Single-ended |
| Rating | Catalog |
| Reference mode | Internal |
| Input voltage range (max) (V) | 5.5 |
| Input voltage range (min) (V) | 0 |
| Features | Oscillator, PGA, Small Size |
| Operating temperature range (°C) | -40 to 125 |
| Power consumption (typ) (mW) | 0.72 |
| Analog supply (min) (V) | 2.7 |
| Analog supply voltage (max) (V) | 5.5 |
| Digital supply (min) (V) | 2.7 |
| Digital supply (max) (V) | 5.5 |
| SOT-23 (DBV) | 6 | 8.12 mm² 2.9 x 2.8 |
