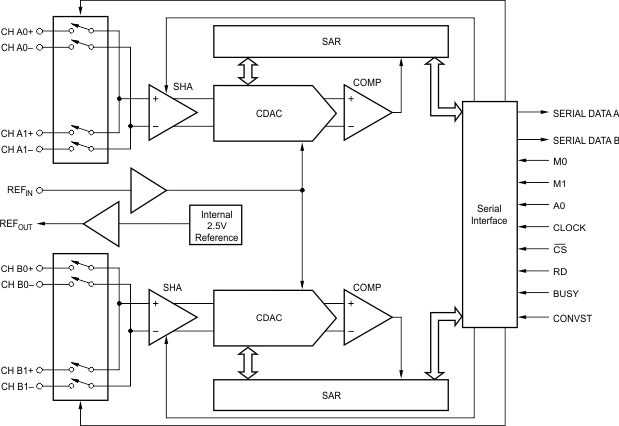

The ADS8361 is a dual, 16-bit, 500kSPS, Analog-to-Digital (A/D) converter with four fully differential input channels grouped into two pairs for high-speed, simultaneous signal acquisition. Inputs to the sample-and-hold amplifiers are fully differential and are maintained differentially to the input of the A/D converter. This provides excellent common-mode rejection of 80dB at 50kHz, which is important in high-noise environments.
The ADS8361 offers a high-speed, dual serial interface and control inputs to minimize software overhead. The output data for each channel is available as a 16-bit word. The ADS8361 is offered in SSOP-24 and QFN-32 (5x5) packages and is fully specified over the -40°C to +125°C operating range.
All trademarks are the property of their respective owners.
| Resolution (Bits) | 16 |
| Sample rate (max) (ksps) | 500 |
| Number of input channels | 4 |
| Interface type | SPI |
| Architecture | SAR |
| Input type | Differential |
| Multichannel configuration | Simultaneous Sampling |
| Rating | Catalog |
| Reference mode | External, Internal |
| Input voltage range (max) (V) | 5.25 |
| Input voltage range (min) (V) | 0 |
| Operating temperature range (°C) | -40 to 125 |
| Power consumption (typ) (mW) | 150 |
| Analog supply (min) (V) | 4.75 |
| Analog supply voltage (max) (V) | 5.25 |
| SNR (dB) | 83 |
| Digital supply (min) (V) | 2.7 |
| Digital supply (max) (V) | 5.5 |

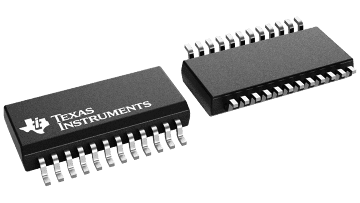

| SSOP (DBQ) | 24 | 51.9 mm² 8.65 x 6 |

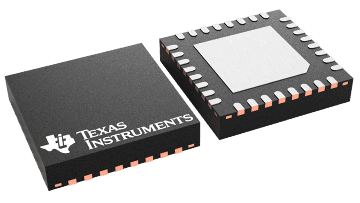

| VQFN (RHB) | 32 | 25 mm² 5 x 5 |
