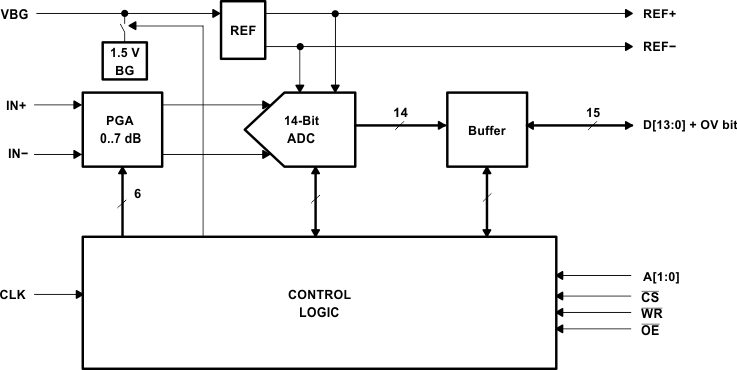

The THS1408 is a 14-bit, 3/8-MSPS single-supply analog-to-digital converter (ADC), with an internal reference, differential inputs, programmable input gain, and an on-chip sample and hold amplifier.
Implemented with a CMOS process, the device has outstanding price/performance and power/speed ratios. The THS1408 is designed for use with 3.3-V systems, and with a high-speed µP-compatible parallel interface, making it the first choice for solutions based on high-performance DSPs like the TI TMS320C6000 series.
(1) Component qualification in accordance with JEDEC and industry standards to ensure reliable operation over an extended temperature range. This includes, but is not limited to, Highly Accelerated Stress Test (HAST) or biased 85/85, temperature cycle, autoclave or unbiased HAST, electromigration, bond intermetallic life, and mold compound life. Such qualification testing should not be viewed as justifying use of this component beyond specified performance and environmental limits.
| Sample rate (max) (Msps) | 8 |
| Resolution (Bits) | 14 |
| Number of input channels | 1 |
| Interface type | Parallel CMOS |
| Analog input BW (MHz) | 140 |
| Features | Low Power |
| Rating | HiRel Enhanced Product |
| Peak-to-peak input voltage range (V) | 3.3 |
| Power consumption (typ) (mW) | 270 |
| Architecture | Pipeline |
| SNR (dB) | 72 |
| ENOB (bit) | 11.5 |
| SFDR (dB) | 80 |
| Operating temperature range (°C) | -55 to 125 |
| Input buffer | Yes |

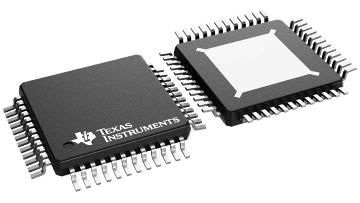

| HTQFP (PHP) | 48 | 81 mm² 9 x 9 |
