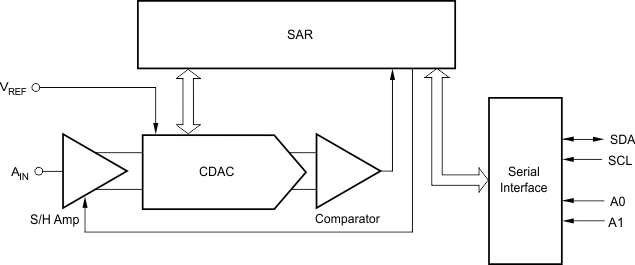

The ADS7823 is a single-supply, low-power, 12-bit data acquisition device that features a serial I2C interface. The Analog-to-Digital (A/D) converter features a sample-and-hold amplifier and internal, asynchronous clock. The combination of an I2C serial two-wire interface and micropower consumption makes the ADS7823 ideal for applications requiring the A/D converter to be close to the input source in remote locations and for applications requiring isolation. The ADS7823 is available in an MSOP-8 package.
All trademarks are the property of their respective owners.
| Resolution (Bits) | 12 |
| Sample rate (max) (ksps) | 50 |
| Number of input channels | 1 |
| Interface type | I2C |
| Architecture | SAR |
| Input type | Single-ended |
| Rating | Catalog |
| Reference mode | External |
| Input voltage range (max) (V) | 5.25 |
| Input voltage range (min) (V) | 0 |
| Operating temperature range (°C) | -40 to 85 |
| Power consumption (typ) (mW) | 1.2 |
| Analog supply (min) (V) | 4.75 |
| Analog supply voltage (max) (V) | 5.25 |
| SNR (dB) | 72 |
| Digital supply (min) (V) | 4.75 |
| Digital supply (max) (V) | 5.25 |
| VSSOP (DGK) | 8 | 14.7 mm² 3 x 4.9 |
