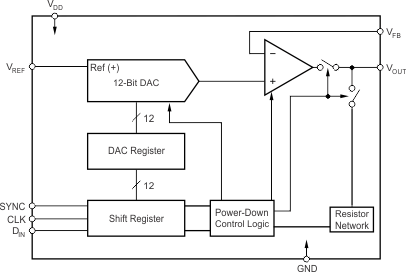

The DAC7513 is a low-power, single, 12-bit buffered voltage output Digital-to-Analog Connector (DAC).The on-chip precision output amplifier allows rail-to-rail output swing to be achieved. The DAC7513 uses a versatile 3-wire serial interface that operates at clock rates up to 30MHz and is compatible with standard SPI™, QSPI™, Microwire™, and DSP interfaces.
The DAC7513 requires an external reference voltage to set the output range of the DAC, this allows the DAC7513 to be used in a multiplying mode. The DAC7513 incorporates a power-on reset circuit which ensures that the DAC output powers up at 0V and remains there until a valid write takes place to the device. The DAC7513 contains a power-down feature, accessed over the serial interface, that reduces the current consumption of the device to 200nA at 5V.
The low-power consumption of this part in normal operation makes it ideally suited to portable battery-operated equipment. The power consumption is 0.5mW at 5V reducing to 1 µW in power-down mode.
The DAC7513 is available in an SOT23-8 package and an MSOP-8 package.
SPI and QSPI are registered trademarks of Motorola.
Microwire is a registered trademark of National Semiconductor.
| Resolution (Bits) | 12 |
| Number of DAC channels | 1 |
| Interface type | SPI |
| Output type | Buffered Voltage |
| Settling time (µs) | 10 |
| Features | Low Power |
| Reference type | Ext |
| Architecture | String |
| Rating | Catalog |
| Output range (max) (mA/V) | 5 |
| Output range (min) (mA/V) | 0 |
| Sample/update rate (Msps) | 0.095 |
| Power consumption (typ) (mW) | 0.3 |
| Operating temperature range (°C) | -40 to 105 |
| SOT-23 (DCN) | 8 | 4.64 mm² 2.9 x 1.6 |
| VSSOP (DGK) | 8 | 14.7 mm² 3 x 4.9 |
