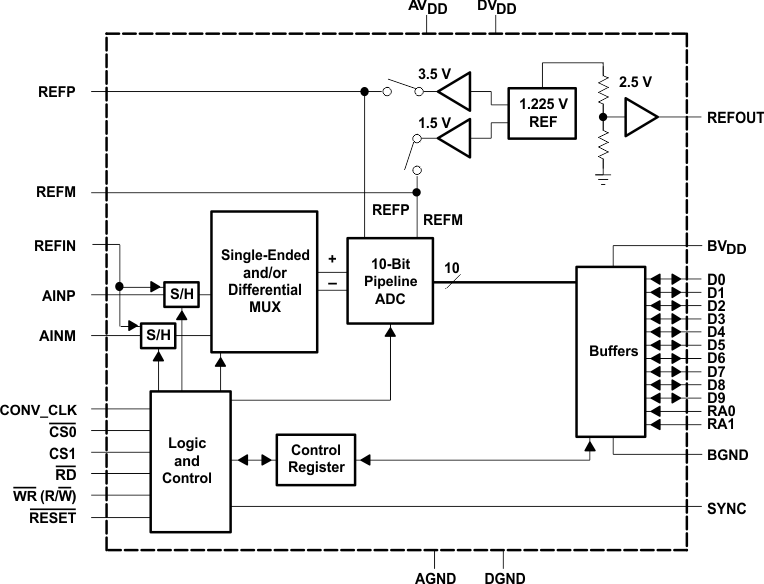

The THS1009 is a CMOS, low-power, 10-bit, 8 MSPS analog-to-digital converter (ADC). The speed, resolution, bandwidth, and single-supply operation are suited for applications in radar, imaging, high-speed acquisition, and communications. A multistage pipelined architecture with output error correction logic provides for no missing codes over the full operating temperature range. Internal control registers allow for programming the ADC into the desired mode. The THS1009 consists of two analog inputs, which are sampled simultaneously. These inputs can be selected individually and configured to single-ended or differential inputs. Internal reference voltages for the ADC (1.5 V and 3.5 V) are provided. An external reference can also be chosen to suit the dc accuracy and temperature drift requirements of the application.
The THS1009C is characterized for operation from 0°C to 70°C, and the THS1009I is characterized for operation from –40°C to 85°C.
| Resolution (Bits) | 10 |
| Sample rate (max) (ksps) | 8000 |
| Number of input channels | 2 |
| Interface type | Parallel |
| Architecture | Pipeline |
| Input type | Differential, Single-ended |
| Multichannel configuration | Simultaneous Sampling |
| Rating | Catalog |
| Reference mode | External, Internal |
| Input voltage range (max) (V) | 4 |
| Input voltage range (min) (V) | 1.4 |
| Operating temperature range (°C) | -40 to 85 |
| Power consumption (typ) (mW) | 186 |
| Analog supply (min) (V) | 4.75 |
| Analog supply voltage (max) (V) | 5.25 |
| SNR (dB) | 61 |
| Digital supply (min) (V) | 3 |
| Digital supply (max) (V) | 5.25 |
| TSSOP (DA) | 32 | 89.1 mm² 11 x 8.1 |
