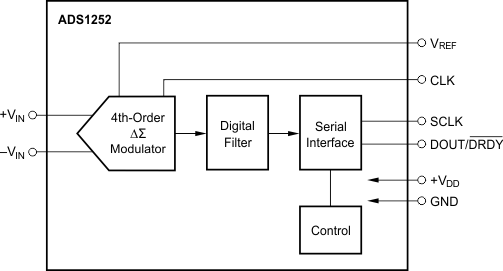

The ADS1252 is a precision, wide dynamic range, delta-sigma, Analog-to-Digital (A/D) converter with 24-bit resolution operating from a single +5V supply. The delta-sigma architecture is used for wide dynamic range and to ensure 24 bits of no missing code performance. An effective resolution of 19 bits (2.5ppm of rms noise) is achieved for conversion rates up to 40kHz.
The ADS1252 is designed for high-resolution measurement applications in cardiac diagnostics, smart transmitters, industrial process control, weight scales, chromatography, and portable instrumentation. The converter includes a flexible, 2-wire synchronous serial interface for low-cost isolation.
The ADS1252 is a single-channel converter and is offered in an SO-8 package.
All trademarks are the property of their respective owners.
| Resolution (Bits) | 24 |
| Sample rate (max) (ksps) | 41 |
| Number of input channels | 1 |
| Interface type | SPI |
| Architecture | Delta-Sigma |
| Input type | Differential |
| Rating | Catalog |
| Reference mode | External |
| Input voltage range (max) (V) | 5.25 |
| Input voltage range (min) (V) | 0 |
| Features | 50/60 Hz Rejection |
| Operating temperature range (°C) | -40 to 85 |
| Power consumption (typ) (mW) | 40 |
| Analog supply (min) (V) | 4.75 |
| Analog supply voltage (max) (V) | 5.25 |
| Digital supply (min) (V) | 4.75 |
| Digital supply (max) (V) | 5.25 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
