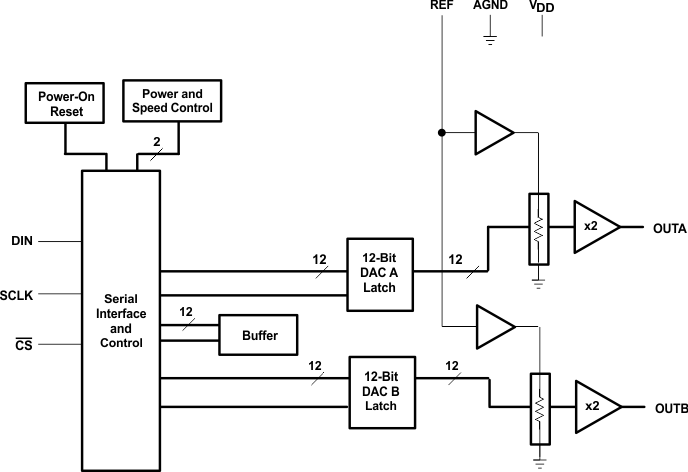

The TLV5618A is a dual 12-bit voltage output DAC with a flexible 3-wire serial interface. The serial interface is compatible with TMS320, SPI™, QSPI™, and Microwire™ serial ports. It is programmed with a 16-bit serial string containing 4 control and 12 data bits.
The resistor string output voltage is buffered by an x2 gain rail-to-rail output buffer. The buffer features a Class-AB output stage to improve stability and reduce settling time. The programmable settling time of the DAC allows the designer to optimize speed versus power dissipation.
Implemented with a CMOS process, the device is designed for single supply operation from 2.7 V to 5.5 V. It is available in an 8-pin SOIC package in standard commercial and industrial temperature ranges.
The TLV5618AC is characterized for operation from 0°C to 70°C. The TLV5618AI is characterized for operation from –40°C to 85°C. The TLV5618AQ is characterized for operation from –40°C to 125°C. The TLV5618AM is characterized for operation from –55°C to 125°C.
SPI and QSPI are trademarks of Motorola, Inc.
Microwire is a trademark of National Semiconductor Corporation.
| Resolution (Bits) | 12 |
| Number of DAC channels | 2 |
| Interface type | SPI |
| Output type | Buffered Voltage |
| Settling time (µs) | 3 |
| Reference type | Ext |
| Architecture | String |
| Rating | Military |
| Output range (max) (mA/V) | 5.1 |
| Output range (min) (mA/V) | 0 |
| Sample/update rate (Msps) | 0.093 |
| Power consumption (typ) (mW) | 1.8 |
| Operating temperature range (°C) | -55 to 125 |

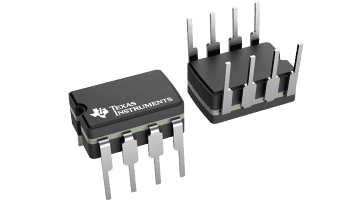

| CDIP (JG) | 8 | 64.032 mm² 9.6 x 6.67 |
| LCCC (FK) | 20 | 79.0321 mm² 8.89 x 8.89 |
