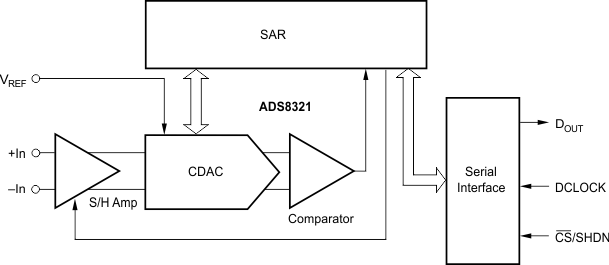

The ADS8321 is a 16-bit sampling analog-to-digital converter (ADC) with tested specifications over a 4.75V to 5.25V supply range. It requires very little power even when operating at the full 100kHz data rate. At lower data rates, the high speed of the device enables it to spend most of its time in the power-down mode—the average power dissipation is less than 1mW at 10kHz data rate.
The ADS8321 also features a synchronous serial (SPI/SSI compatible) interface, and a differential input. The reference voltage can be set to any level within the range of 500mV to VCC/2.
Ultra-low power and small size make the ADS8321 ideal for portable and battery-operated systems. It is also a perfect fit for remote data acquisition modules, simultaneous multi-channel systems, and isolated data acquisition. The ADS8321 is available in an MSOP-8 package.
All thradmarks are the property of their respective owners.
| Resolution (Bits) | 16 |
| Sample rate (max) (ksps) | 100 |
| Number of input channels | 1 |
| Interface type | SPI |
| Architecture | SAR |
| Input type | Differential, Pseudo-Differential, Single-ended |
| Rating | Catalog |
| Reference mode | External |
| Input voltage range (max) (V) | 2.6 |
| Input voltage range (min) (V) | 0 |
| Operating temperature range (°C) | -40 to 85 |
| Power consumption (typ) (mW) | 5.5 |
| Analog supply (min) (V) | 4.75 |
| Analog supply voltage (max) (V) | 5.25 |
| SNR (dB) | 87 |
| Digital supply (min) (V) | 4.75 |
| Digital supply (max) (V) | 5.25 |
| VSSOP (DGK) | 8 | 14.7 mm² 3 x 4.9 |
