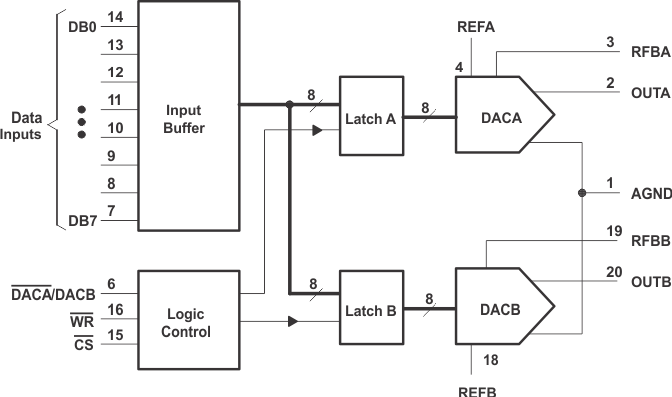

The TLC7528C, TLC7528E, and TLC7528I are dual, 8-bit, digital-to-analog converters (DACs) designed with separate on-chip data latches and feature exceptionally close DAC-to-DAC matching. Data is transferred to either of the two DAC data latches through a common, 8-bit, input port. Control input DACA/DACB determines which DAC is to be loaded. The load cycle of these devices is similar to the write cycle of a random-access memory, allowing easy interface to most popular microprocessor buses and output ports. Segmenting the high-order bits minimizes glitches during changes in the most significant bits, where glitch impulse is typically the strongest.
These devices operate from a 5V to 15V power supply and dissipates less than 15 mW (typical). The 2- or 4-quadrant multiplying makes these devices a sound choice for many microprocessor-controlled gain-setting and signal-control applications. It can be operated in voltage mode, which produces a voltage output rather than a current output. Refer to the typical application information in this data sheet.
The TLC7528C is characterized for operation from 0°C to 70°C. The TLC7528I is characterized for operation from -25°C to 85°C. The TLC7528E is characterized for operation from -40°C to 85°C.
All trademarks are the property of their respective owners.
| Resolution (Bits) | 8 |
| Number of DAC channels | 2 |
| Interface type | Parallel |
| Output type | Unbuffered Current |
| Settling time (µs) | 0.1 |
| Reference type | Ext |
| Architecture | Multiplying DAC |
| Rating | Catalog |
| Output range (max) (mA/V) | 0.5 |
| Output range (min) (mA/V) | -0.5 |
| Sample/update rate (Msps) | 10 |
| Power consumption (typ) (mW) | 7.5 |
| Operating temperature range (°C) | -40 to 85 |
| PDIP (N) | 20 | 228.702 mm² 24.33 x 9.4 |
| PLCC (FN) | 20 | 98.01 mm² 9.9 x 9.9 |
| SOIC (DW) | 20 | 131.84 mm² 12.8 x 10.3 |
| SOP (NS) | 20 | 98.28 mm² 12.6 x 7.8 |
| TSSOP (PW) | 20 | 41.6 mm² 6.5 x 6.4 |
