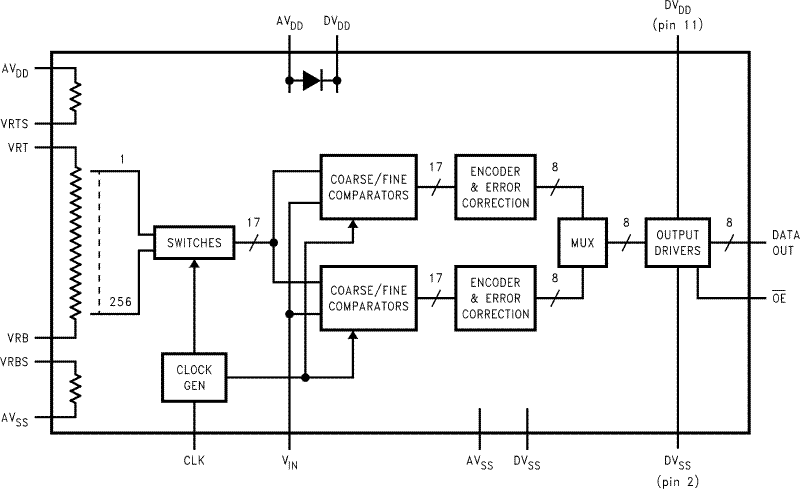

The ADC1173 is a low power, 15 MSPS analog-to-digital converter that digitizes signals to 8 bits while consuming just 33 mW of power (typ). The ADC1173 uses a unique architecture that achieves 7.6 Effective Bits. Output formatting is straight binary coding.
The excellent DC and AC characteristics of this device, together with its low power consumption and +3V single supply operation, make it ideally suited for many video, imaging and communications applications, including use in portable equipment. Furthermore, the ADC1173 is resistant to latch-up and the outputs are short-circuit proof. The top and bottom of the ADC1173's reference ladder is available for connections, enabling a wide range of input possibilities.
The ADC1173 is offered in a 24-pin TSSOP package and is designed to operate over the -40°C to +75°C commercial temperature range.
All trademarks are the property of their respective owners.
| Sample rate (max) (Msps) | 15 |
| Resolution (Bits) | 8 |
| Number of input channels | 1 |
| Interface type | Parallel CMOS |
| Analog input BW (MHz) | 120 |
| Features | Low Power |
| Rating | Catalog |
| Peak-to-peak input voltage range (V) | 2 |
| Power consumption (typ) (mW) | 33 |
| Architecture | Two-Step |
| SNR (dB) | 49 |
| ENOB (bit) | 7.7 |
| SFDR (dB) | 65 |
| Operating temperature range (°C) | -40 to 75 |
| Input buffer | No |
| TSSOP (PW) | 24 | 49.92 mm² 7.8 x 6.4 |
