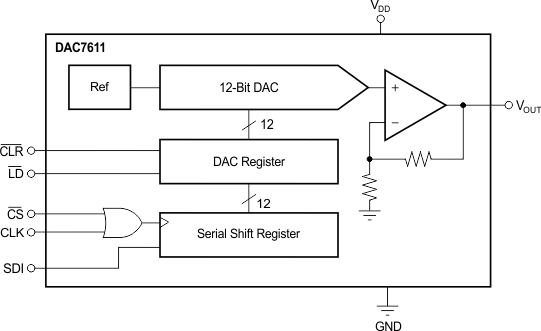

The DAC7611 is a 12-bit digital-to-analog converter (DAC) with guaranteed 12-bit monotonicity performance over the industrial temperature range. It requires a single +5V supply and contains an input shift register, latch, 2.435V reference, DAC, and high speed rail-to-rail output amplifier. For a full-scale step, the output will settle to 1 LSB within 7µs. The device consumes 2.5mW (0.5mA at 5V).
The synchronous serial interface is compatible with a wide variety of DSPs and microcontrollers. Clock (CLK), serial data in (SDI), and load strobe (LD_) comprise the serial interface. In addition, two control pins provide a chip select (CS_) function and an asynchronous clear (CLR_) input. The CLR_ input can be used to ensure that the DAC7611 output is 0V on power-up or as required by the application.
The DAC7611 is available in an 8-lead SOIC or 8-pin plastic DIP package and is fully specified over the industrial temperature range of –40°C to +85°C.
| Resolution (Bits) | 12 |
| Number of DAC channels | 1 |
| Interface type | SPI |
| Output type | Buffered Voltage |
| Settling time (µs) | 10 |
| Reference type | Int |
| Architecture | R-2R |
| Rating | Catalog |
| Output range (max) (mA/V) | 4.1 |
| Output range (min) (mA/V) | 0 |
| Sample/update rate (Msps) | 0.132 |
| Power consumption (typ) (mW) | 5 |
| Operating temperature range (°C) | -40 to 85 |
| PDIP (P) | 8 | 92.5083 mm² 9.81 x 9.43 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
