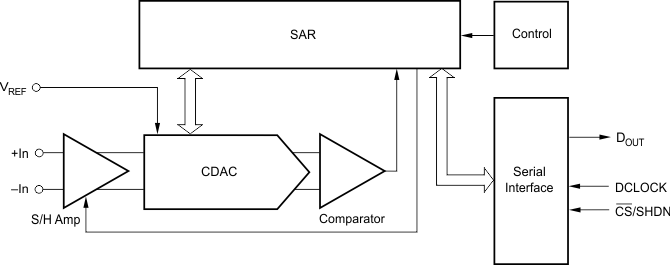

The ADS7817 is a 12-bit, 200kHz sampling Analog-to-Digital (A/D) converter that features a high impedance fully differential analog input. The reference voltage can be varied from 100mV to 2.5V, with a corresponding input-referred resolution between 49uV and 1.22mV.
The differential input, low power, automatic power down, and small size make the ADS7817 ideal for direct connection to transducers in battery operated systems, remote data acquisition, or multi-channel applications. The ADS7817 is available in a plastic mini-DIP-8, an SO-8, or an MSOP-8 package.
| Resolution (Bits) | 12 |
| Sample rate (max) (ksps) | 200 |
| Number of input channels | 1 |
| Interface type | SPI |
| Architecture | SAR |
| Input type | Pseudo-Differential, Single-ended |
| Rating | Catalog |
| Reference mode | External |
| Input voltage range (max) (V) | 5.25 |
| Input voltage range (min) (V) | 0 |
| Operating temperature range (°C) | -40 to 85 |
| Power consumption (typ) (mW) | 2.3 |
| Analog supply (min) (V) | 4.75 |
| Analog supply voltage (max) (V) | 5.25 |
| SNR (dB) | 71 |
| Digital supply (min) (V) | 4.75 |
| Digital supply (max) (V) | 5.25 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
| VSSOP (DGK) | 8 | 14.7 mm² 3 x 4.9 |
