The ADS930 is a high speed pipelined Analog-to-Digital Converter (ADC) specified to operate from nominal +3V or +5V power supplies with tolerances of up to 10%. This complete converter includes a high bandwidth track/hold, a 8-bit quantizer and an internal reference.
The ADS930 employs digital error correction techniques to provide excellent differential linearity for demanding imaging applications. Its low distortion and high SNR give the extra margin needed for telecommunications, video and test instrumentation applications.

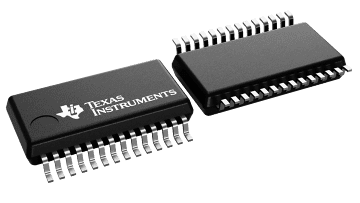

This high performance ADC is specified for performance at a 30MHz sampling rate. The ADS930 is available in a SSOP-28 package.
| Sample rate (max) (Msps) | 30 |
| Resolution (Bits) | 8 |
| Number of input channels | 1 |
| Interface type | Parallel CMOS |
| Analog input BW (MHz) | 100 |
| Features | Low Power |
| Rating | Catalog |
| Peak-to-peak input voltage range (V) | 1, 2 |
| Power consumption (typ) (mW) | 66 |
| Architecture | Pipeline |
| SNR (dB) | 46 |
| ENOB (bit) | 7.1 |
| SFDR (dB) | 50 |
| Operating temperature range (°C) | -40 to 85 |
| Input buffer | No |
| SSOP (DB) | 28 | 79.56 mm² 10.2 x 7.8 |
