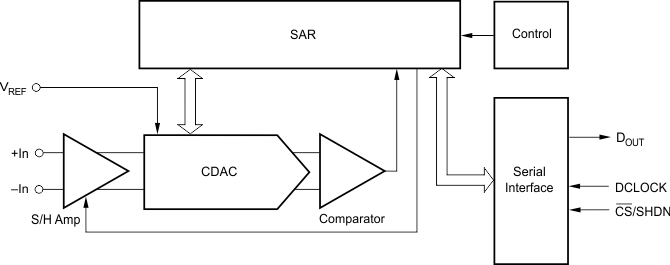

The ADS1286 is a 12-bit, 20kHz analog-to-digital converter with a differential input and sample and hold amplifier and consumes only 250µA of supply current. The ADS1286 offers an SPI and SSI compatible serial interface for communications over a two or three wire interface. The combination of a serial two wire interface and micropower consumption makes the ADS1286 ideal for remote applications and for those requiring isolation.
The ADS1286 is available in a 8-pin plastic mini DIP and a 8-lead SOIC.
| Resolution (Bits) | 12 |
| Sample rate (max) (ksps) | 20 |
| Number of input channels | 1 |
| Interface type | SPI |
| Architecture | SAR |
| Input type | Single-ended |
| Rating | Catalog |
| Reference mode | External |
| Input voltage range (max) (V) | 5.25 |
| Input voltage range (min) (V) | 0 |
| Operating temperature range (°C) | -40 to 85 |
| Power consumption (typ) (mW) | 1.25 |
| Analog supply (min) (V) | 4.5 |
| Analog supply voltage (max) (V) | 5.25 |
| SNR (dB) | 72 |
| Digital supply (min) (V) | 4.5 |
| Digital supply (max) (V) | 5.25 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
