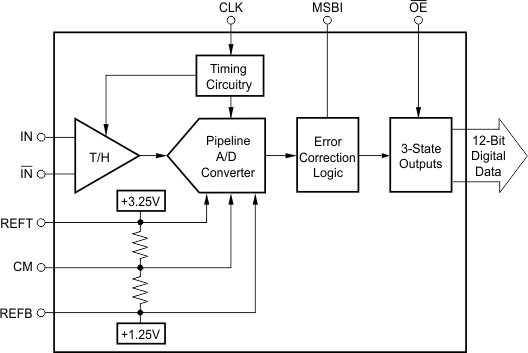

The ADS802 is a low-power, monolithic 12-bit, 10MHz Analog-to-Digital (A/D) converter utilizing a small geometry CMOS process. This complete converter includes a 12-bit quantizer, wideband track-and-hold, reference and three-state outputs. It operates from a single +5V power supply and can be configured to accept either differential or single-ended input signals.
The ADS802 employs digital error correction in order to provide excellent Nyquist differential linearity performance for demanding imaging applications. Its low distortion, high SNR, and high-oversampling capability give it the extra margin needed for telecommunications, test instrumentation, and video applications.

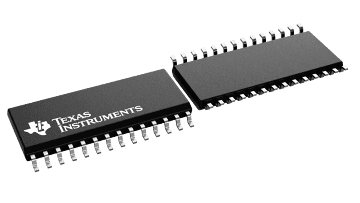

This high-performance A/D converter is specified for ac and DC performance at a 10MHz sampling rate. The ADS802 is available in an SO-28 package.
All trademarks are the property of their respective owners.
| Sample rate (max) (Msps) | 10 |
| Resolution (Bits) | 12 |
| Number of input channels | 1 |
| Interface type | Parallel CMOS |
| Analog input BW (MHz) | 65 |
| Features | Low Power |
| Rating | Catalog |
| Peak-to-peak input voltage range (V) | 1.25, 3.25 |
| Power consumption (typ) (mW) | 260 |
| Architecture | Pipeline |
| SNR (dB) | 67 |
| ENOB (bit) | 10.7 |
| SFDR (dB) | 77 |
| Operating temperature range (°C) | -40 to 85 |
| Input buffer | Yes |
| SOIC (DW) | 28 | 184.37 mm² 17.9 x 10.3 |
