The DAC715 is a complete monolithic digital-to-analog converter including a +10V temperature compensated reference, current-to-voltage amplifier, 16-bit parallel interface that is double buffered, and an asynchronous clear function which immediately sets the output voltage to one-half of full-scale.
The output voltage range is 0 to +10V while operating from ±12V or ±15V supplies. The gain and bipolar offset adjustments are designed so that they can be set via external potentiometers or external D/A converters. The output amplifier is protected against short circuit to ground.

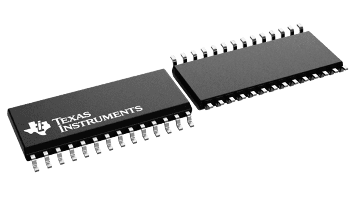

The 28-pin DAC715 is available in a 0.3" plastic DIP and wide-body plastic SOIC package. The DAC715P, U, PB, and UB are specified over the –40°C to +85°C temperature range while the DAC715PK, UK, PL, and UL are specified over the 0°C to +70°C range.
| Resolution (Bits) | 16 |
| Number of DAC channels | 1 |
| Interface type | Parallel |
| Output type | Buffered Voltage |
| Settling time (µs) | 10 |
| Features | On-chip Offset and Gain Calibration, Reset to Mid-Scale |
| Reference type | Int |
| Architecture | R-2R |
| Rating | Catalog |
| Output range (max) (mA/V) | 10 |
| Output range (min) (mA/V) | 0 |
| Sample/update rate (Msps) | 0.1 |
| Power consumption (typ) (mW) | 10 |
| Operating temperature range (°C) | -40 to 85 |
| SOIC (DW) | 28 | 184.37 mm² 17.9 x 10.3 |
