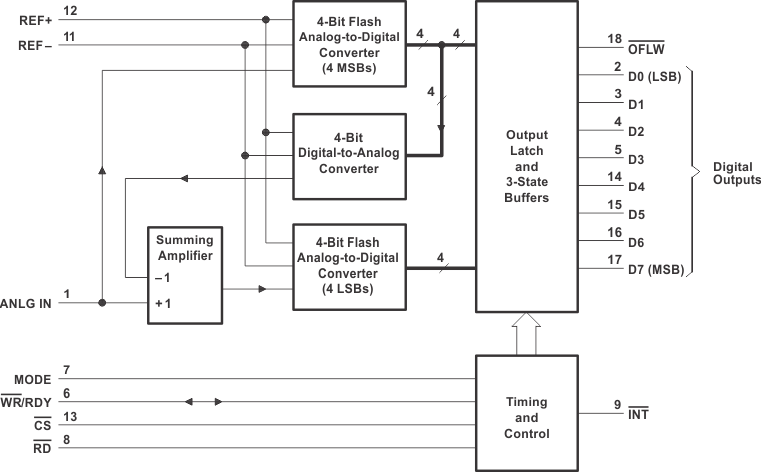

The TLC0820AC and the TLC0820AI are Advanced LinCMOSTM 8-bit analog-to-digital converters each consisting of two 4-bit flash converters, a 4-bit digital-to-analog converter, a summing (error) amplifier, control logic, and a result latch circuit. The modified flash technique allows low-power integrated circuitry to complete an 8-bit conversion in 1.18 us over temperature. The on-chip track-and-hold circuit has a 100-ns sample window and allows these devices to convert continuous analog signals having slew rates of up to 100 mV/us without external sampling components. TTL-compatible 3-state output drivers and two modes of operation allow interfacing to a variety of microprocessors. Detailed information on interfacing to most popular microprocessors is readily available from the factory.
Advanced LinCMOS is a trademark of Texas Instruments Incorporated.
| Resolution (Bits) | 8 |
| Sample rate (max) (ksps) | 392 |
| Number of input channels | 1 |
| Interface type | Parallel |
| Architecture | SAR |
| Input type | Single-ended |
| Rating | Catalog |
| Reference mode | External |
| Input voltage range (max) (V) | 8 |
| Input voltage range (min) (V) | 0 |
| Operating temperature range (°C) | 0 to 70 |
| Power consumption (typ) (mW) | 37.5 |
| Analog supply (min) (V) | 4.5 |
| Analog supply voltage (max) (V) | 8 |
| Digital supply (min) (V) | 4.5 |
| Digital supply (max) (V) | 8 |
| PDIP (N) | 20 | 228.702 mm² 24.33 x 9.4 |
| PLCC (FN) | 20 | 98.01 mm² 9.9 x 9.9 |
| SOIC (DW) | 20 | 131.84 mm² 12.8 x 10.3 |
| SSOP (DB) | 20 | 56.16 mm² 7.2 x 7.8 |
