The TLC7524C, TLC7524E, and TLC7524I are CMOS, 8-bit, digital-to-analog converters (DACs) designed for easy interface to most popular microprocessors.

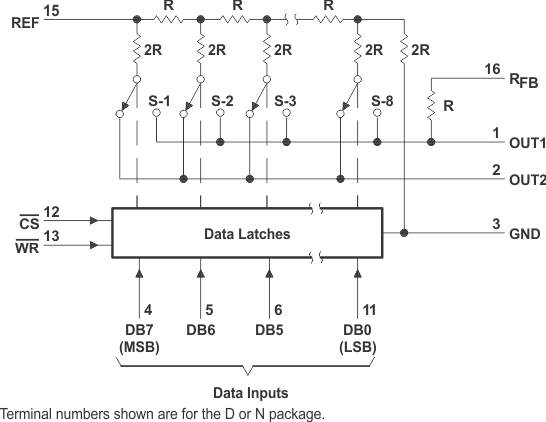

The devices are 8-bit, multiplying DACs with input latches and load cycles similar to the write cycles of a random access memory. Segmenting the high-order bits minimizes glitches during changes in the most significant bits, which produce the highest glitch impulse. The devices provide accuracy to 1/2 LSB without the need for thin-film resistors or laser trimming, while dissipating less than 5 mW typically.
Featuring operation from a 5V to 15V single supply, these devices interface easily to most microprocessor buses or output ports. The 2- or 4-quadrant multiplying makes these devices an ideal choice for many microprocessor-controlled gain-setting and signal-control applications.
The TLC7524C is characterized for operation from 0°C to 70°C. The TLC7524I is characterized for operation from -25°C to 85°C. The TLC7524E is characterized for operation from -40°C to 85°C.
All trademarks are the property of their respective owners.
| Resolution (Bits) | 8 |
| Number of DAC channels | 1 |
| Interface type | Parallel |
| Output type | Unbuffered Current |
| Settling time (µs) | 0.1 |
| Reference type | Ext |
| Architecture | Multiplying DAC |
| Rating | Catalog |
| Output range (max) (mA/V) | 2 |
| Output range (min) (mA/V) | -2 |
| Sample/update rate (Msps) | 10 |
| Power consumption (typ) (mW) | 5 |
| Operating temperature range (°C) | -40 to 85 |
| PDIP (N) | 16 | 181.42 mm² 19.3 x 9.4 |
| PLCC (FN) | 20 | 98.01 mm² 9.9 x 9.9 |
| SOIC (D) | 16 | 59.4 mm² 9.9 x 6 |
| SOP (NS) | 16 | 79.56 mm² 10.2 x 7.8 |
| TSSOP (PW) | 16 | 32 mm² 5 x 6.4 |
