DLP9000X

正在供货

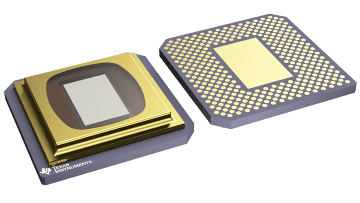

DLP® 0.90 高速 WQXGA A 型 DMD

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

Featuring over 4 million micromirrors, the high resolution DLP9000 and DLP9000X digital micromirror devices (DMDs) are spatial light modulators (SLMs) that modulate the amplitude, direction, and/or phase of incoming light. This advanced light control technology has numerous applications in the industrial, medical, and consumer markets. The streaming nature of the DLP9000X and its DLPC910 controller enable very high speed continuous data streaming for lithographic applications. Both DMDs enable large build sizes and fine resolution for 3D printing applications. The high resolution provides the direct benefit of scanning larger objects for 3D machine vision applications.

High Resolution 2560×1600 (WQXGA) Array
- > 4 Million Micromirrors
- 7.56-µm Micromirror Pitch
- 0.9-Inch Micromirror Array Diagonal
- ±12° Micromirror Tilt Angle (Relative to Flat State)
- Designed for Corner Illumination
- Integrated Micromirror Driver Circuitry
- Two High Speed Options
DLP9000X With a Single DLPC910 Digital Controller
- 480 MHz Input Data Clock Rate
- Up to 61 Giga-Bits Per Second (with Continuous Streaming Input Data)
- Up to 14989 Hz (1-Bit Binary Patterns)
- Up to 1873 Hz (8-Bit Gray Patterns With Illumination Modulation)
DLP9000 with Dual DLPC900 Digital Controllers
- 400 MHz Input Data Clock Rate
- Up to 38 Giga-Bits per Second (With Up to 400 Pre-Stored Binary Patterns)
- Up to 9523 Hz (1-Bit Binary Patterns)
- Up to 1031 Hz (8-Bit Gray Patterns Pre- Loaded With Illumination Modulation), External Input Up to 360 Hz
Designed for Use With Broad Wavelength Range
- 400 nm to 700 nm
- Window Transmission 95% (Single Pass, Through Two Window Surfaces)
- Micromirror Reflectivity 88%
- Array Diffraction Efficiency 86%
- Array Fill Factor 92%

Illumination wavelength (min) (nm)	400
Illumination wavelength (max) (nm)	700
Micromirror array size	2560 x 1600
Chipset family	DLP9000X, DLPC910, DLPR910
Micromirror pitch (mm)	0.0076
Component type	DMD
Micromirror array orientation	Orthogonal
Pattern rate, binary (max) (Hz)	14989
Array diagonal (in)	0.9
Display resolution (max)	2560 x 1600 (WQXGA)
Rating	Catalog
Operating temperature range (°C)	0 to 70
Pattern rate, 8-bit (max) (Hz)	1873
Micromirror driver support	Integrated
Thermal dissipation (°C/W)	0.5

DLP-TYPEA.9 (FLS)

355

1777.4656 mm² 42.16 x 42.16
