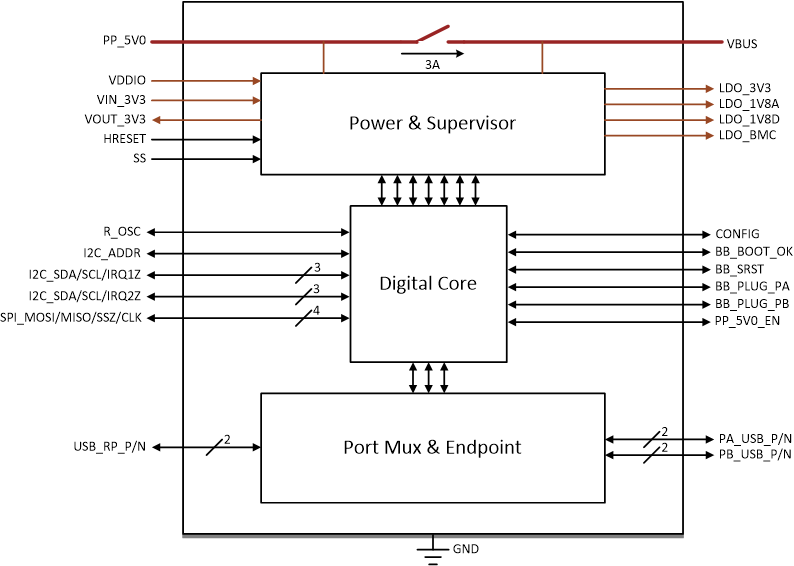

The TPS65982BB device provides a USB billboard endpoint for USB-PD devices implementing alternate modes. The integrated internal USB multiplexor allows the TPS65982BB to support up to two USB Type-C ports. The TPS65982BB communicates with USB-PD port controllers using an I2C interface to enable the billboard as well as update stored billboard strings. An integrated 5-V load switch provides VBUS protection for an optional USB Type-A port.
| Function | USB2 |
| Type | Passive switch |
| External power-path control | No |
| Internal power path | 5 V 3 A |
| USB speed (MBits) | 480 |
| Rating | Catalog |
| Operating temperature range (°C) | -10 to 85 |
| NFBGA (ZBH) | 96 | 36 mm² 6 x 6 |
