The DS90C185 is a low-power serializer for portable battery-powered applications that reduces the size of the RGB interface between the host GPU and the display.

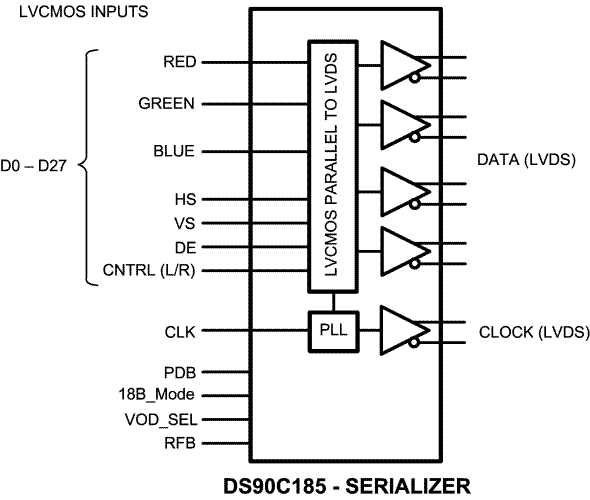

24-bit RGB plus three video control signals are serialized and translated to LVDS-compatible levels and sent as a 4 data + clock (4D+C) reduced-width LVDS compatible interface. The LVDS Interface is compatible with FPD-Link (1) deserializers and many LVDS based displays. These interfaces are commonly supported in LCD modules with “LVDS” or FPD-Link / FlatLink single-pixel input interfaces.
Displays up to 1400x1050 at 60 fps are supported with 24-bpp color depth. 18 bpp may also be supported by a dedicated mode with a 3D+C output. Power dissipation is minimized by the full LVCMOS design and 1.8-V powered core and VDDIO rails.
The DS90C185 is offered in the small 48-pin WQFN package and features single 1.8-V supply operation for minimum power dissipation (50 mW typ).
| Function | Serializer |
| Color depth (bps) | 24 |
| Input compatibility | LVCMOS |
| Output compatibility | LVDS |
| Features | Low-EMI Point-to-Point Communication |
| EMI reduction | LVDS |
| Rating | Catalog |
| Operating temperature range (°C) | -10 to 70 |

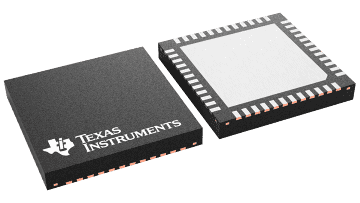

| WQFN (NJV) | 48 | 36 mm² 6 x 6 |
