DP83630

正在供货

具有较小外形尺寸的 IEEE 1588 精密时间协议 (PTP) 以太网 PHY 收发器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

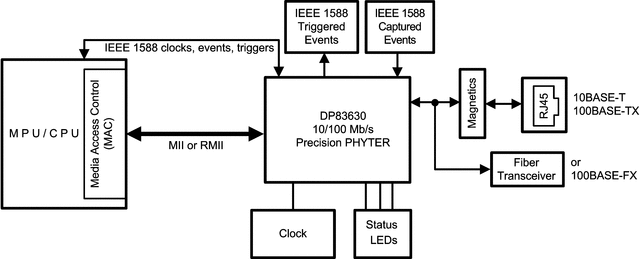

The DP83630 Precision PHYTER device delivers the highest level of precision clock synchronization for real time industrial connectivity based on the IEEE 1588 standard. The DP83630 has deterministic, low latency and allows choice of microcontroller with no hardware customization required. The integrated 1588 functionality allows system designers the flexibility and precision of a close to the wire timestamp. The three key 1588 features supported by the device are:

— Packet time stamps for clock synchronization

— Integrated IEEE 1588 synchronized low jitter clock generation

— Synchronized event triggering and time stamping through GPIO

DP83630 offers innovative diagnostic features unique to Texas Instruments, including dynamic monitoring of link quality during standard operation for fault prediction. These advanced features allow the system designer to implement a fault prediction mechanism to detect and warn of deteriorating and changing link conditions. This single port fast Ethernet transceiver can support both copper and fiber media.

IEEE 1588 V1 and V2 Supported
UDP/IPv4, UDP/IPv6, and Layer2 Ethernet Packets Supported
IEEE 1588 Clock Synchronization
Selectable Frequency Synchronized Low Jitter Clock Output
Timestamp Resolution of 8 ns
Allows Sub 10 ns Synchronization to Master Reference
12 IEEE 1588 GPIOs for Trigger or Capture
Deterministic, Low Transmit and Receive Latency
Dynamic Link Quality Monitoring
TDR Based Cable Diagnostic and Cable Length Detection
10/100 Mb/s Packet BIST (Built in Self Test)
Error-Free Operation up to 150 Meters CAT5 Cable
ESD Protection - 8 kV Human Body Model
2.5 V and 3.3 V I/Os and MAC Interface
Auto-MDIX for 10/100 Mbps
Auto-Crossover in Forced Modes of Operation
RMII Rev. 1.2 and MII MAC Interface
RMII Master Mode
25 MHz MDC and MDIO Serial Management Interface
IEEE 802.3u 100BASE-FX Fiber Interface
IEEE 1149.1 JTAG
Programmable LED Support for Link, 10 /100 Mb/s Mode, Duplex, Activity, and Collision Detect
Optional 100BASE-TX Fast Link-Loss Detection
Industrial Temperature Range

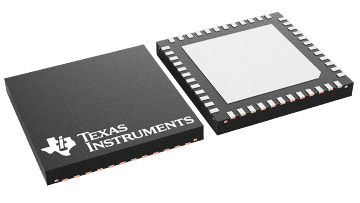

48 Pin WQFN Package (7mm) x (7mm)

PHYTER is a trademark of Texas Instruments. All trademarks are the property of their respective owners.

Datarate (Mbps)	10/100
Interface type	MII, RMII
Number of ports	Single
Rating	Catalog
Features	Cable diagnostics, FX support, IEEE 1588 PTP, JTAG1149.1
Supply voltage (V)	3.3
I/O supply voltage (typ) (V)	2.5, 3.3
Operating temperature range (°C)	-40 to 85
Number of LEDs	3
ESD HBM (kV)	8

WQFN (RHS)

49 mm² 7 x 7
