TS3DV20812

正在供货

适用于 DVI 1.0/HDMI 1.2a 应用的 2.2Gbps 2 通道差动 1 至 2 和 2 至 1 多路复用器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

TS3DV20812 is a High Speed Data Rate up to 2Gbps for Differential Signal Passive bi-directional Multiplexer and De-multiplexer for I/O rails up to 5V Level with Low Crosstalk and Insertion Loss.

TS3DV20812 can be used in either HDMI/DVI sink side or source side with 4-differential pair supporting the high speed and control pins.

The Ioff and back drive protection allowing to connect the external cable and prevent the back flow current when the Vcc is into 0V.

The 3 side band signals can be used in DDC (SDAL, SCL) and CEC Signal MUX.

TS3DS20812 is characterized for operation from –40°C to 85°C.

Four High-Speed Bidirectional Differential Pair
Channel MUX/DEMUX
Supports up to 2 Gbps Data Rate
V_DD Operating Range 2.5 V or 3.3
- –0 V to 3.3 V Rail To Rail at 2.5 V
- –0 V to 5 V Rail To Rail at 3.3V
I_OFF partial Powerdown and Back-Drive Protection.
5-V Input Tolerant on Control Pin
Supports Both AC- and DC-Coupled Signals
Low Crosstalk: –38 dB at 825 MHz,
2.5 V or 3.3 V
Insertion Loss: –1.5 dB at 825 MHz,
2.5 V or 3.3 V
Off Isolation –24.67 dB at 825 MHz
Low Bit-to-Bit Skew within Pair 5 ps Maximum
Channel-to-Channel Skew: 30 ps Maximum
Propagation Delay Times: 250 ps Maximum
ESD Performance Tested per JESD 22
- 2000-V Human Body Model
  (A114-B, Class II)
- 1000-V Charged-Device Model (C101)
APPLICATIONS
- HDMI/DVI Video MUX
- Panel LVDS Bus MUX
- LVDS, LVPECL, CML
- Analog Signals VGA
- Gigabit LAN Signal MUX
- Serial Backplane Signal MUX
- Optical Module
- Central Office Telecommunication
- Wireless Base Station
- High-Speed Logic Data I/O MUX

Type	Mux
Protocols	DVI, HDMI, LAN, LVD, VGA
Rating	Catalog
Speed (max) (Gbps)	2
Number of channels	11
Supply voltage (V)	3.3
Operating temperature range (°C)	-40 to 85

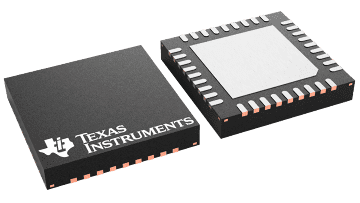

VQFN (RHH)

36 mm² 6 x 6
