The TS3USB221A-Q1 is a high-bandwidth switch specially designed for the switching of high-speed USB 2.0 signals in automotive USB hubs or controllers with limited USB I/Os. The wide bandwidth (900 MHz) of this switch allows signals to pass with minimum edge and phase distortion. The device multiplexes differential outputs from a USB host device to one of two corresponding outputs. The switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. It is designed for low bit-to-bit skew and high channel-to-channel noise isolation, and is compatible with various standards, such as high-speed USB 2.0 (480 Mbps).
The TS3USB221A-Q1 integrates ESD protection cells on all pins, is available in a tiny UQFN package
(2 mm × 1.5 mm) and is characterized over the free air temperature range from –40°C to 125°C.
| Type | Passive mux |
| Function | USB 2.0 |
| USB speed (MBits) | 480 |
| Number of channels | 2 |
| Supply voltage (max) (V) | 3.6 |
| Supply voltage (min) (V) | 2.3 |
| Ron (typ) (mΩ) | 3400 |
| Input/output voltage (min) (V) | 0 |
| Input/output voltage (max) (V) | 5.5 |
| Configuration | 2 |
| Features | Logic Controlled (Output Enabled), USB 2.0 |
| Rating | Automotive |
| Operating temperature range (°C) | -40 to 125 |
| Supply current (max) (µA) | 30 |
| ESD HBM (typ) (kV) | 7 |
| Bandwidth (MHz) | 900 |

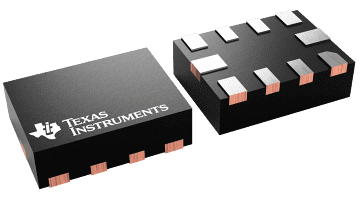

| UQFN (RSE) | 10 | 3 mm² 2 x 1.5 |
