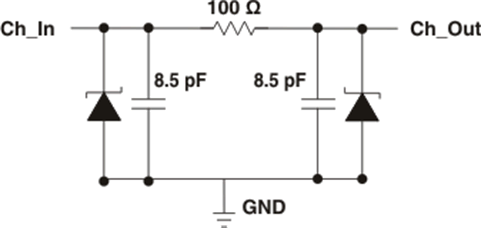

The TPDxF003 family is a series of highly integrated devices designed to provide Electromagnetic Interference (EMI) filtering in all systems subjected to electromagnetic interference. These filters also provide a Transient Voltage Suppressor (TVS) diode circuit for Electrostatic Discharge (ESD) protection which prevents damage to the application when subjected to ESD stress far exceeding IEC 61000-4-2 (Level 4).
The TPDxF003 family is specified for –40°C to 85°C operation. These filters are also packaged in space-saving 0.4-mm pitch DQD packages.
All other trademarks are the property of their respective owners
| Package name | WSON |
| Vrwm (V) | 5.5 |
| Bi-/uni-directional | Uni-Directional |
| Number of channels | 4 |
| IO capacitance (typ) (pF) | 8.5 |
| Clamping voltage (V) | 15 |
| Breakdown voltage (min) (V) | 6 |

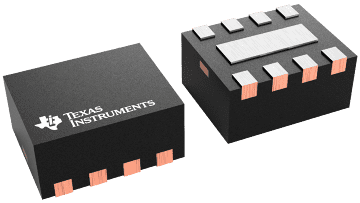

| WSON (DQD) | 8 | 2.295 mm² 1.7 x 1.35 |
