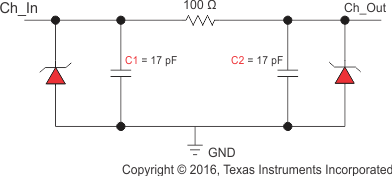

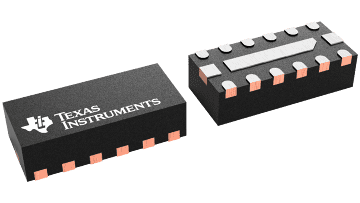

The TPD6F002 device is a highly-integrated device that provides a six-channel Electromagnetic Interference (EMI) filter and a TVS based ESD protection diode array. The low-pass filter array suppresses EMI/RFI emissions for data ports subject to electromagnetic interference. The TVS diode array is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard. The high level of integration, combined with its small easy-to-route DSV package, allows this device to provide great circuit protection for LCD displays, memory interfaces, GPIO lines, and FPD-Link.
All other trademarks are the property of their respective owners
| Package name | WSON |
| Vrwm (V) | 5.5 |
| Bi-/uni-directional | Uni-Directional |
| Number of channels | 6 |
| IO capacitance (typ) (pF) | 34 |
| Clamping voltage (V) | 15 |
| Breakdown voltage (min) (V) | 6 |
| WSON (DSV) | 12 | 4.05 mm² 3 x 1.35 |
