The TS3USB31E is a high-bandwidth switch specially designed for the switching of high-speed USB 2.0 signals in handset and consumer applications, such as cell phones, digital cameras, and notebooks with hubs or controllers with limited USB I/Os. The wide bandwidth (1100 MHz) of this switch allows signals to pass with minimum edge and phase distortion. The switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. It is designed for low bit-to-bit skew and high channel-to-channel noise isolation, and is compatible with various standards, such as high-speed USB 2.0 (480 Mbps).
All other trademarks are the property of their respective owners
| Type | Passive mux |
| Function | USB 2.0 |
| USB speed (MBits) | 480 |
| Number of channels | 2 |
| Supply voltage (max) (V) | 4.3 |
| Supply voltage (min) (V) | 2.25 |
| Ron (typ) (mΩ) | 6500 |
| Input/output voltage (min) (V) | 0 |
| Input/output voltage (max) (V) | 4.3 |
| Configuration | 1 |
| Features | Logic Controlled (Output Enabled), USB 2.0 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| Supply current (max) (µA) | 1 |
| ESD HBM (typ) (kV) | 8 |
| Bandwidth (MHz) | 1100 |

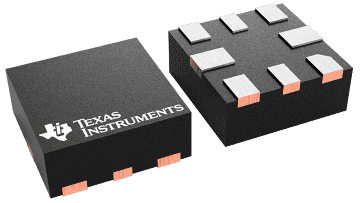

| UQFN (RSE) | 8 | 2.25 mm² 1.5 x 1.5 |
