TPD2E001-Q1

正在供货

适用于 USB 2.0 且具有 VCC 引脚的汽车类双通道 1.5pF、5.5V、±8kV ESD 保护二极管

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

The TPD2E001 is a low-capacitance ±15-kV ESD-protection diode array designed to protect sensitive electronics attached to communication lines. Each channel consists of a pair of diodes that steer ESD current pulses to V_CC or GND. The TPD2E001 protects against ESD pulses up to ±15-kV Human-Body Model (HBM), ±8-kV Contact Discharge, and ±15-kV Air-Gap Discharge, as specified in IEC 61000-4-2. This device has a 1.5-pF capacitance per channel, making it ideal for use in high-speed data IO interfaces.

The TPD2E001 is a two-channel device intended for USB and USB 2.0 applications.

The TPD2E001 is available in the DRL package and is specified for –40°C to 85°C operation.

Qualified for Automotive Applications
ESD Protection Exceeds
- ±15-kV Human-Body Model (HBM)
- ±8-kV IEC 61000-4-2 Contact Discharge
- ±15-kV IEC 61000-4-2 Air-Gap Discharge
Low 1.5-pF Input Capacitance
Low 1-nA (Max) Leakage Current
0.9-V to 5.5-V Supply-Voltage Range
Two-Channel Device
Space-Saving DRL Package
Alternate 3-, 4-, 6-Channel Options Available:
TPD3E001, TPD4E001, and TPD6E001
APPLICATIONS
- USB 2.0
- Ethernet
- FireWire™
- Video
- Cell Phones
- SVGA Video Connections
- Glucose Meters

FireWire is a trademark of Apple Computer, Inc.

Package name	SOT-5X3
Vrwm (V)	5.5
Bi-/uni-directional	Uni-Directional
Number of channels	2
IO capacitance (typ) (pF)	1.5
Clamping voltage (V)	16
Breakdown voltage (min) (V)	11

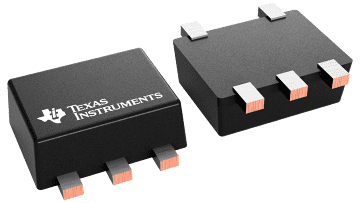

SOT-5X3 (DRL)

2.56 mm² 1.6 x 1.6
