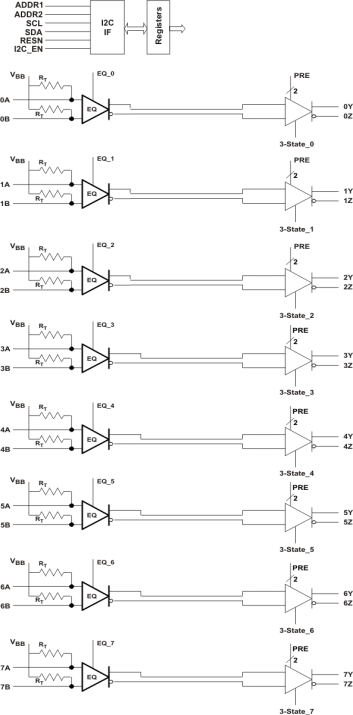

The SN65LVCP418 is an 8 Channel signal conditioning buffer in a flow-through pin-out allowing for ease in PCB layout. VML signaling is used to achieve a high-speed data throughput while using low power. Internal signal paths are fully differential to achieve the high signaling speeds while maintaining low signal skews. The SN65LVCP418 incorporates 100-Ω termination resistors for those applications where board space is a premium. Built-in transmit pre-emphasis and receive equalization for superior signal integrity performance.
The SN65LVCP418 is characterized for operation from –40°C to 85°C.
| Type | Redriver |
| Number of channels | 8 |
| Input compatibility | AC-coupling, CML, LVPEC |
| Speed (max) (Gbps) | 4.25 |
| Protocols | XAUI |
| Operating temperature range (°C) | -40 to 85 |

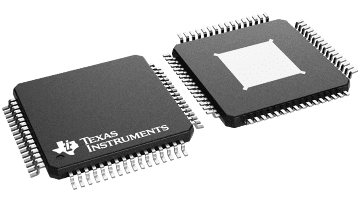

| HTQFP (PAP) | 64 | 144 mm² 12 x 12 |
