TS2PCIE412

正在供货

4 通道 PCIe 8:16 多路复用器和多路解复用器无源 FET 开关

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

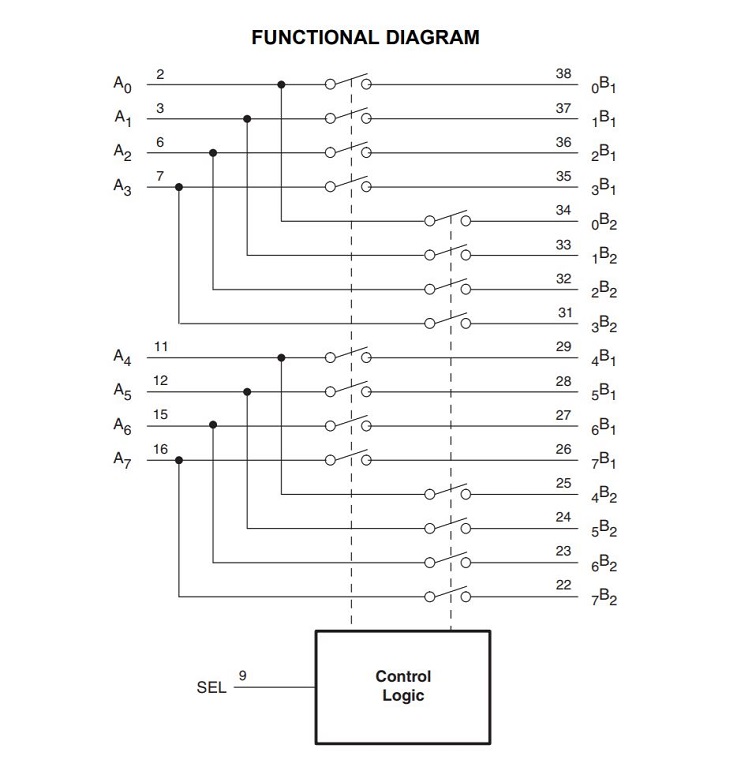

The TS2PCIE412 is a 4-channel PCIe 2:1 multiplexer/demultiplexer switch that can be used to route one PCIe data lane between two possible destinations or two PCIe data lanes to one destination. Each channel consists of differential pairs of receive (RX) and transmit (TX) signals and operates at a signal-processing bandwidth speed, which supports the PCIe standard of 2.5 Gbps. The device is controlled with one select input (SEL) pin, where SEL controls the data path of the multiplexer/demultiplexer and can be connected to any GPIO in the system. The unselected channel is set in a high-impedance state.

Compatible With PCI Express (PCIe) Standard
Wide Bandwidth of over 3 Gbps
Low Crosstalk (X_TALK = –32 dB Typ at 1.25 GHz)
O_IRR = –36.3 dB Typical at 1.25 GHz
Low Bit-to-Bit Skew (t_sk(O) = 0.06 ns Typical)
V_DD Operating Range: 1.5 V to 2 V
I_offSupports Partial Power-Down Mode Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested Per JESD 22
- 2000-V Human-Body Model (A114-B, Class II)
- 1000-V Charged-Device Model (C101)
APPLICATIONS
- PCIe Bus Multiplexing and Expansion
- Routing PCI Express Data and/or Display Port Signals
- Notebook PCs
- Desktop PCs
- Servers/Storage Area Networks

All other trademarks are the property of their respective owners.

Type	Passive mux
Protocols	PCIe1, PCIe2
Applications	PCIe
Number of channels	4
Speed (max) (Gbps)	4.2
Supply voltage (V)	1.8
Rating	Catalog
Operating temperature range (°C)	-40 to 85

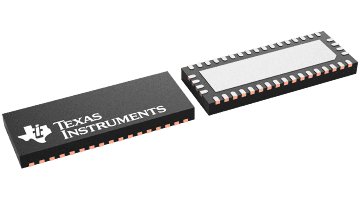

WQFN (RUA)

31.5 mm² 9 x 3.5
