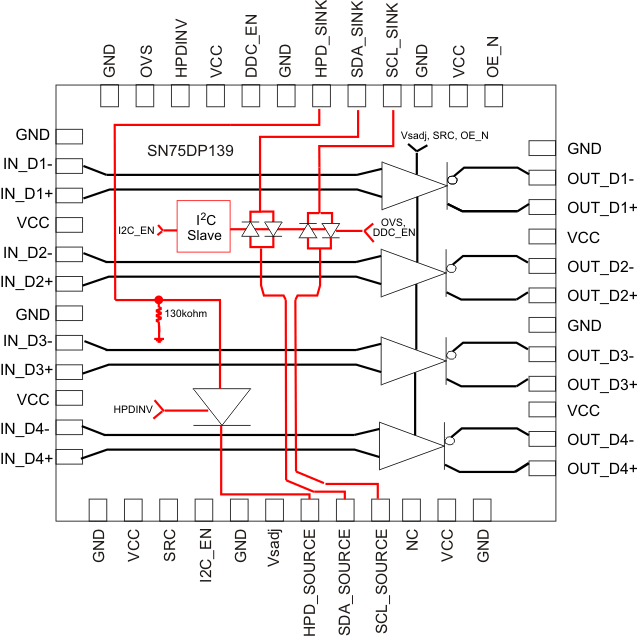

The SN75DP139 is a dual-mode DisplayPort input to Transition-Minimized Differential Signaling (TMDS) output. The TMDS output has a built-in level-shifting re-driver supporting Digital Video Interface (DVI) 1.0 and High Definition Multimedia Interface (HDMI) 1.4b standards. The SN75DP139 is specified up to a maximum data rate of 3.4 Gbps, supporting resolutions greater then 1920 × 1200 or HDTV 12-bit color depth at 1080p (progressive scan). The SN75DP139 is compliant with the HDMI 1.4b specifications and supports optional protocol enhancements such as 3D graphics at resolutions demanding a pixel rate up to 340 MHz.
| Type | Redriver |
| Protocols | HDMI |
| Rating | Catalog |
| Speed (max) (Gbps) | 3.4 |
| Number of channels | 1 |
| Supply voltage (V) | 3.3 |
| Operating temperature range (°C) | 0 to 85 |
| VQFN (RGZ) | 48 | 49 mm² 7 x 7 |
| WQFN (RSB) | 40 | 25 mm² 5 x 5 |
