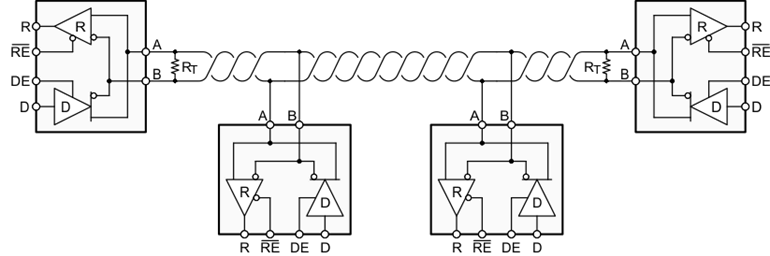

The SN65HVD11-HT device combines a 3-state differential line driver and differential input line receiver that operates with a single 3.3-V power supply. It is designed for balanced transmission lines and meets or exceeds ANSI TIA/EIA-485-A and ISO 8482:1993, with the exception that the thermal shutdown is removed. This differential bus transceiver is a monolithic integrated circuit designed for bidirectional data communication on multipoint bus-transmission lines. The driver and receiver have active-high and active-low enables, respectively, that can be externally connected together to function as direction control.
The driver differential outputs and receiver differential inputs connect internally to form a differential input/ output (I/O) bus port that is designed to offer minimum loading to the bus when the driver is disabled or VCC = 0.
| Number of receivers | 1 |
| Number of transmitters | 1 |
| Duplex | Half |
| Supply voltage (nom) (V) | 3.3 |
| Signaling rate (max) (MBits) | 10 |
| Fault protection (V) | -9 to 14 |
| Common-mode range (V) | -7 to 12 |
| Number of nodes | 256 |
| Isolated | No |
| Supply current (max) (µA) | 18000 |
| Rating | High Temp |
| Operating temperature range (°C) | -55 to 210 |

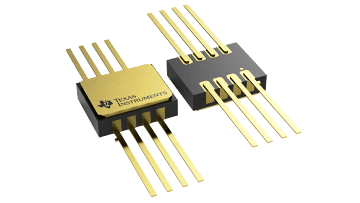

| CDIP_SB (JDJ) | 8 | 88.4569 mm² 11.81 x 7.49 |

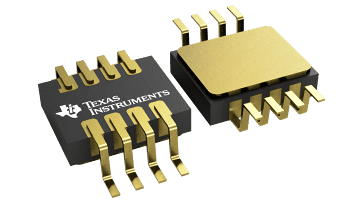

| CFP (HKJ) | 8 | 38.985 mm² 6.9 x 5.65 |
| CFP (HKQ) | 8 | 38.985 mm² 6.9 x 5.65 |
| DIESALE (KGD) | — | See data sheet |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
