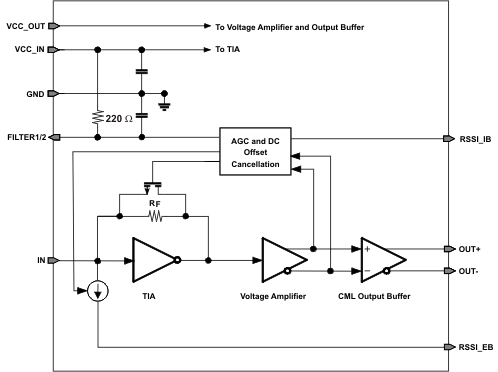

The ONET8501T is a high-speed, high gain, limiting transimpedance amplifier used in optical receivers with data rates up to 12.5Gbps. It features low input referred noise, 10GHz bandwidth, 7kΩ small signal transimpedance, and a received signal strength indicator (RSSI).
The ONET8501T is available in die form, includes an on-chip VCC bypass capacitor and is optimized for packaging in a TO can.
The ONET8501T requires a single 3.3V ±10% supply and its power efficient design typically dissipates less than 105mW. The device is characterized for operation from –40°C to 100°C case (IC back side) temperature.
| Type | Transimpedance and limiting amplifier |
| Data rate (max) (Mbps) | 11300 |
| Supply current (typ) (µA) | 28000 |
| Supply current (max) (µA) | 44000 |
| Deterministic jitter (typ) (ps) | 6 |
| Operating temperature range (°C) | -40 to 100 |
| DIESALE (Y) | — | See data sheet |
