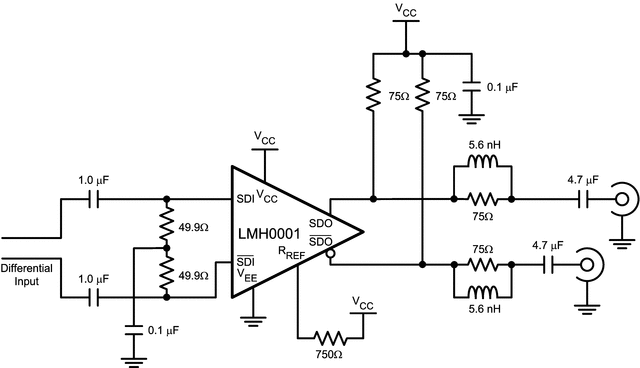

The LMH0001 SMPTE 259M / 344M Serial Digital Cable Driver is designed for use in SMPTE 259M / 344M serial digital video applications. The LMH0001 drives 75Ω transmission lines (Belden 8281, Belden 1694A or equivalent) at data rates up to 540 Mbps.
The output voltage swing of the LMH0001 is adjustable via a single external resistor.

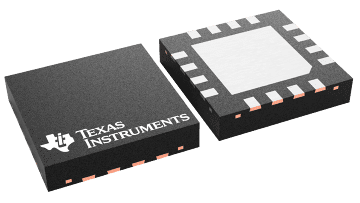

The LMH0001 is powered from a single 3.3V supply. Power consumption is typically 125mW. The LMH0001 is available in a 16-pin WQFN package.
All trademarks are the property of their respective owners.
| Function | Cable driver |
| Supply voltage (V) | 3.3 |
| Power consumption (mW) | 125 |
| Data rate (max) (Mbps) | 540 |
| Control interface | Pin |
| Operating temperature range (°C) | -40 to 85 |
| WQFN (RUM) | 16 | 16 mm² 4 x 4 |
