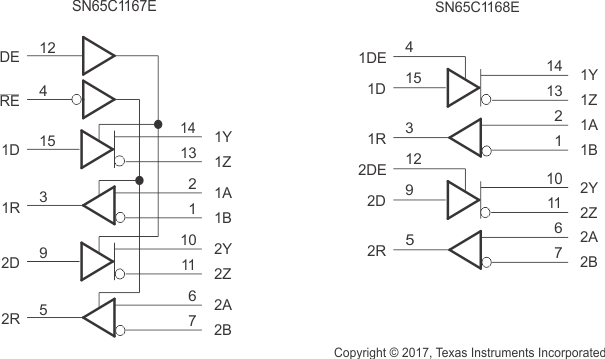

The SN65C1167E and SN65C1168E consist of dual drivers and dual receivers with ±15-kV ESD (Human Body Model [HBM]) and ±8-kV ESD (IEC61000-4-2 Air-Gap Discharge and Contact Discharge) for RS-422 bus pins. The devices meet the requirements of TIA/EIA-422-B and ITU recommendation V.11.
The SN65C1167E combines dual 3-state differential line drivers and 3-state differential line receivers, both of which operate from a single 5-V power supply. The driver and receiver have active-high and active-low enables, respectively, which can be connected together externally to function as direction control.
SN65C1168E drivers have individual active-high enables.
| Number of receivers | 2 |
| Number of transmitters | 2 |
| Duplex | Full |
| Supply voltage (nom) (V) | 5 |
| Signaling rate (max) (MBits) | 10 |
| IEC 61000-4-2 contact (±V) | 8000 |
| Fault protection (V) | -10 to 15 |
| Common-mode range (V) | -7 to 7 |
| Number of nodes | 32 |
| Features | IEC ESD protection |
| Isolated | No |
| Supply current (max) (µA) | 9000 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| SOP (NS) | 16 | 79.56 mm² 10.2 x 7.8 |
| TSSOP (PW) | 16 | 32 mm² 5 x 6.4 |
| VQFN (RGY) | 16 | 14 mm² 4 x 3.5 |
