DP83848J

正在供货

采用 40 引脚 QFN 封装且具有商业级温度范围的 10/100Mbps 以太网 PHY 收发器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

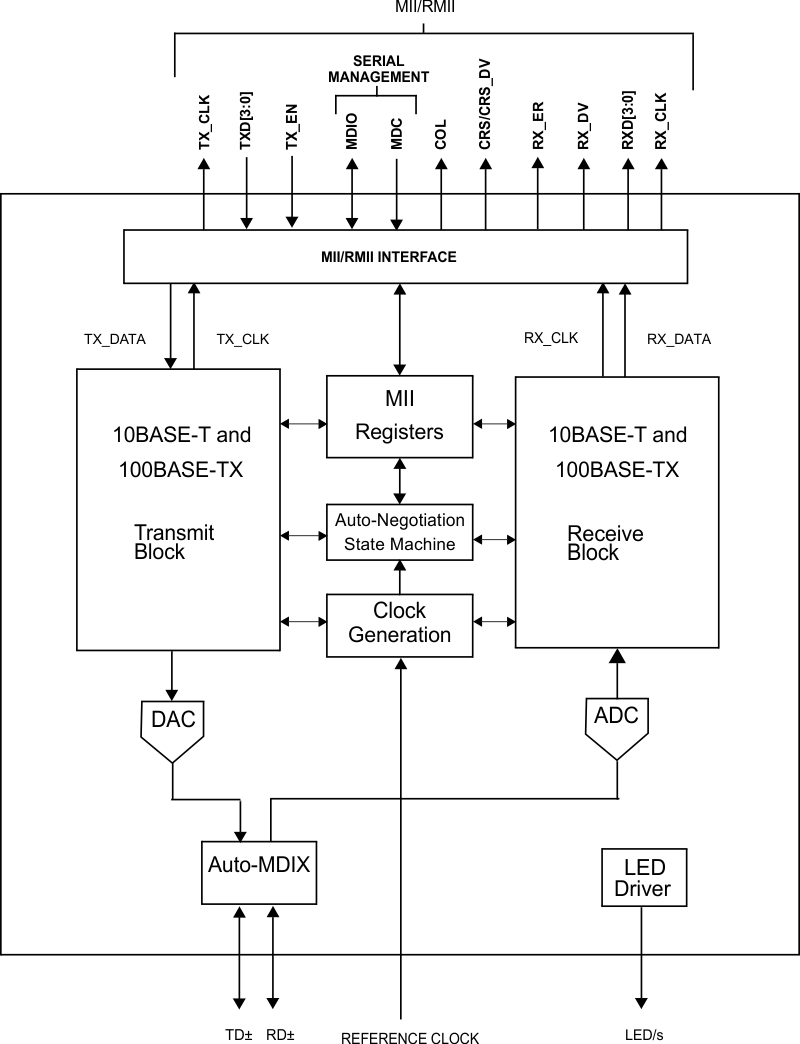

The DP83848x device addresses the quality, reliability and small form factor required for space sensitive applications in embedded systems.

The DP83848x offers performance far exceeding the IEEE specifications, with superior interoperability and industry leading performance beyond 137 meters of Cat-V cable. The DP83848x also offers Auto-MDIX to remove cabling complications. DP83848x has superior ESD protection, greater than 4 kV Human Body Model, providing extremely high reliability and robust operation, ensuring a high-level performance in all applications.

DP83848J/K offers two flexible LED indicators one for Link and the other for Speed. In addition, both MII and RMII are supported ensuring ease and flexibility of design.

The DP83848H/M/T incorporates a 25-MHz clock out that eliminates the need and hence the space and cost, of an additional clock source component.

The DP83848x is offered in small 6-mm × 6-mm WQFN 40-pin package and is ideal for industrial controls, building/factory automation, transportation, test equipment and wire-less base stations.

Low-Power 3.3-V, 0.18-µm CMOS Technology
Auto-MDIX for 10/100 Mb/s
Energy Detection Mode
3.3-V MAC Interface
RMII Rev. 1.2 Interface (configurable)
MII Interface
MII Serial Management Interface (MDC and MDIO)
IEEE 802.3 Auto-Negotiation and Parallel Detection
IEEE 802.3 ENDEC, 10BASE-T Transceivers and Filters
IEEE 802.3 PCS, 100BASE-TX Transceivers and Filters
Integrated ANSI X3.263 Compliant TP-PMD Physical Sub-Layer with Adaptive Equalization and Baseline Wander Compensation
Error-Free Operation Beyond 137 Meters
ESD Protection – Greater than 4 kV Human Body Model
Configurable LED for Link and Activity (DP83848J/K)
25-MHz Clock Output (DP83848H/M/T)
Single Register Access for Complete PHY Status
10/100 Mb/s Packet BIST (Built-in Self Test)

Datarate (Mbps)	10/100
Interface type	MII, RMII
Number of ports	Single
Rating	Catalog
Features	IEEE 802.3 autonegotiation, Parallel detection
Supply voltage (V)	3.3
I/O supply voltage (typ) (V)	3.3
Operating temperature range (°C)	0 to 70
Number of LEDs	2
ESD HBM (kV)	4

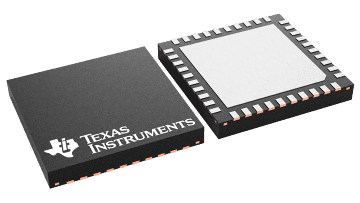

WQFN (RTA)

36 mm² 6 x 6
