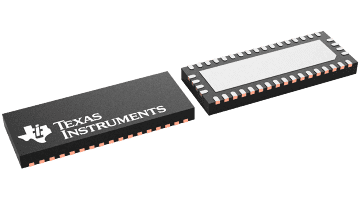

TS3DV520E

正在供货

适用于 DVI 1.0/HDMI 1.2 应用且具有增强型 ESD 保护的 1.65Gbps 5 通道差动 10 至 20 和 20 至 10 多路复用器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

The TS3DV520E is a 20-bit to 10-bit multiplexer/demultiplexer digital video switch with a single select (SEL) input. SEL controls the data path of the multiplexer/demultiplexer. The device provides five differential channels for digital video signal switching.

This device provides low and flat ON-state resistance (r_on) and excellent ON-state resistance match. Low input/output capacitance, high bandwidth, low skew, and low crosstalk among channels make this device suitable for various digital video applications, such as DVI and HDMI.

Voltage on the SEL pin should be less or equal to V_CC, even in the power-down mode
(V_CC = 0 V).

Compatible With HDMI v1.2a (Type A) DVI 1.0
High-Speed Digital Interface
- Wide Bandwidth to support throughput of
  over 1.65 Gbps (Data rate 1.9 Gbps Typ)
- Serial Data Stream at 10× Pixel Clock Rate
- Supports All Video Formats up to 1080p
  and SXGA (1280 × 1024 at 75 Hz)
- Total Raw Capacity 4.95 Gbps (Single Link)
- HDCP Compatible
Compatible with SXGA Video Display formats
up to 1080P (1280 × 1024 at 75Hz)
Low Crosstalk (X_TALK = –37 dB Typ)
Low Bit-to-Bit Skew (t_sk(o) = 0.1 ns Max)
Low and Flat ON-State Resistance
(r_on = 4 Typ, r_on(flat) = 0.5 Typ)
Low Input/Output Capacitance
(C_ON = 8 pF Typ)
Rail-to-Rail Switching on Data I/O Ports
(0 to 3.6 V)
V_CC Operating Range From 3 V to 3.6 V
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested
- 14-kV Human-Body Model Per JESD 22
  (A114-B, Class II)
- 7.5-kV Contact Discharge Per IEC 61000-4-2
Applications
- DVI/HDMI Signal Switching
- Differential DVI, HDMI Signal Multiplexing for
  Audio/Video Receivers and High-Definition
  Televisions (HDTVs)

Type	Mux
Protocols	DVI, HDMI, LVDS, SXGA, TMDS, VGA
Rating	Catalog
Speed (max) (Gbps)	4.9
Number of channels	10
Supply voltage (V)	3.3
Operating temperature range (°C)	-40 to 85

WQFN (RUA)

31.5 mm² 9 x 3.5
